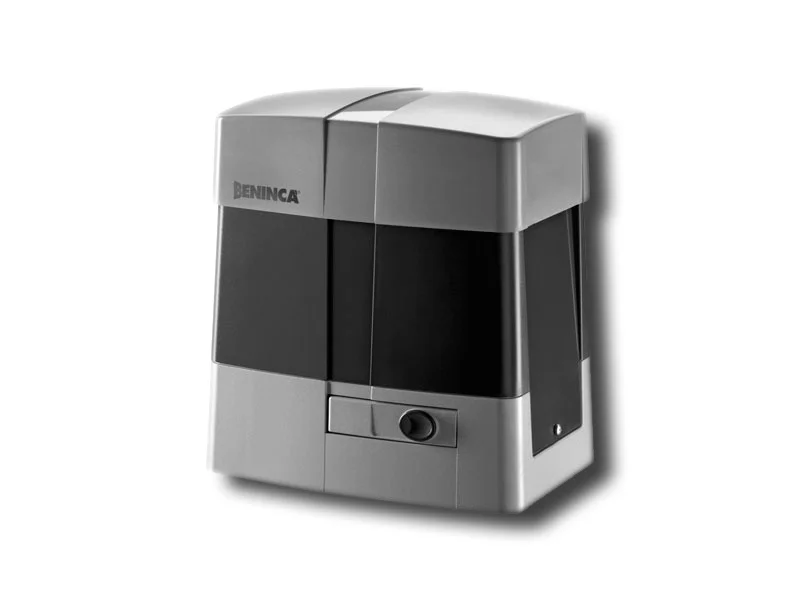

BENINCA - 230VAC GEARED MOTOR FOR SLIDING GATES FOR COMMERCIAL USE UP TO 1500KG
- CONTROL UNIT AND ENCODER INTEGRATES
- THE ENCODER DEVICE ENSURES CRUSH PREVENTION AND PRECISION IN THE GATE MOVING PHASES
- METAL RELEASE LEVER
GEARED MOTOR FOR SLIDING GATES
BULL15M 9592324
TECHNICAL DETAILS:
Power supply: 230 Vac (50-60Hz)
Motor supply: 230 Vac
Max absorbed current: 2,5 A
Max thrust: 1250 N
Opening speed: 10,5 m/min
Duty cycle: 60%
Protection level: IP44
Magnetic limit switches: NO
Operating temperature: -20°C /+50°C
