BENINCA - ELECTROMECHANICAL IRREVERSIBLE GEARED MOTOR FOR TILT UP DOORS WITH COUNTERWEIGHTS FOR RESIDENTIAL USE, WITH LEAVES UP TO 10 M2, FOR RESIDENTIAL/COMMERCIAL USE
- BUILT-IN COURTESY LIGHT
- CONTROL UNIT AND RADIO RECEIVER INTEGRATED IN THE AUTOMATION
- QUIETER THANKS TO THE NEW CONTROL UNIT WITH AUTOTRANSFORMER CREATED TO REDUCE DOOR VIBRATIONS TO A MINIMUM
- OPTIONAL BATTERY POWERED OPERATION
- AMPEROMETRIC SENSOR OBSTACLE DETECTION SYSTEM TO PREVENT CRUSHING
THE ENCODER IS NOT INCLUDED

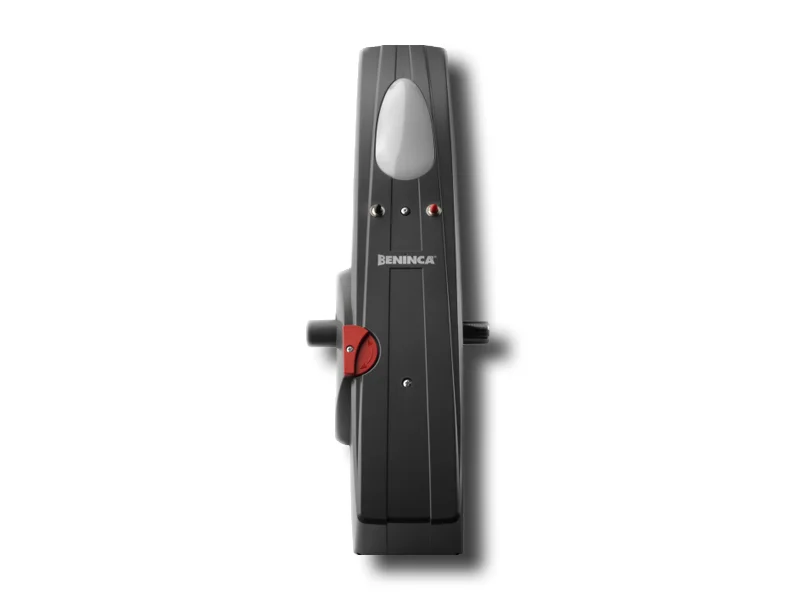

GEARED MOTOR FOR COUNTERWEIGHT GARAGE DOORS ZED
ZED24.RI 9592631
TECHNICAL DETAILS:POWER SUPPLY: 230 Vac (50-60Hz)POWER SUPPLY: 24 VdcMAX ABSORBED CURRENT: 1 ATORQUE: 260 NmOPENING TIME: 10''/15''DUTY CYCLE: intensive usePROTECTION LEVEL: IP40OPERATING TEMPERATURE: -20°C / +50°CMAX DOOR SURFACE: 10 M2/MAX
