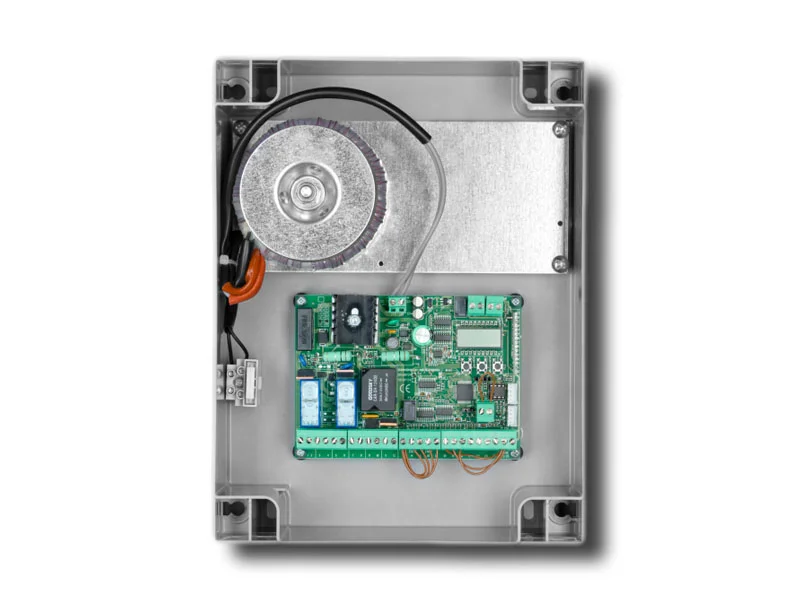

BENINCA - CONTROL UNIT FOR 1 OR 2 ACTUATORS FOR SWING GATES, OPPOSING SLIDING GATES AND FOLDING INDUSTRIAL DOORS, WITH UP TO 2 LEAVES
- INTEGRATED LCD DISPLAY
- INTEGRATED RADIO RECEIVER 433.92 MHZ 64 CODES AND 3 RADIO CODES (ADVANCED ROLLING CODE, ROLLING CODE, FIXED CODE)
- REMOVABLE TERMINAL BLOCKS
- SEPARATE LIMIT SWITCH INPUTS FOR EACH MOTOR
- OPEN, CLOSE AND PEDESTRIAN INPUTS
- OPEN-CLOSE AND PHOTOCELL INPUTS
- INPUT FOR SENSITIVE EDGE N.C. OR 8K2
- OUTPUT FOR 12 VDC ELECTRIC LOCK
- GATE OPEN, SERVICE LIGHT, SECOND RADIO CHANNEL AND PHOTOCELL TEST INDICATOR OUTPUT
- AUTOSET OPERATING PARAMETERS
- SEPARATE ELECTRONIC TORQUE ADJUSTMENT FOR EACH MOTOR
- ANTI-CRUSHING SAFETY WITH AMPEROMETRIC DETECTION AND ENCODER MANAGEMENT
- SEPARATE OPENING AND CLOSING SLOWDOWNS FOR EACH MOTOR
- POSSIBILITY OF PARAMETER CONFIGURATION AND RADIO CONTROL MANAGEMENT WITH ADVANTOUCH SYSTEM
- NUMBER OF MANOEUVRES
- PROGRAMMING ACCESS PASSWORD
- MAINTENANCE ALERT
- WITH OPEN, CLOSE AND STOP BUTTONS INCORPORATED IN THE CONTROL PANEL
CENTRAL POWER SUPPLY: 230 Vac - 50/60 Hz
MOTOR POWER SUPPLY: 24 Vdc 120W + 120W
CONTROL UNIT
BRAINY24.P 917600973
