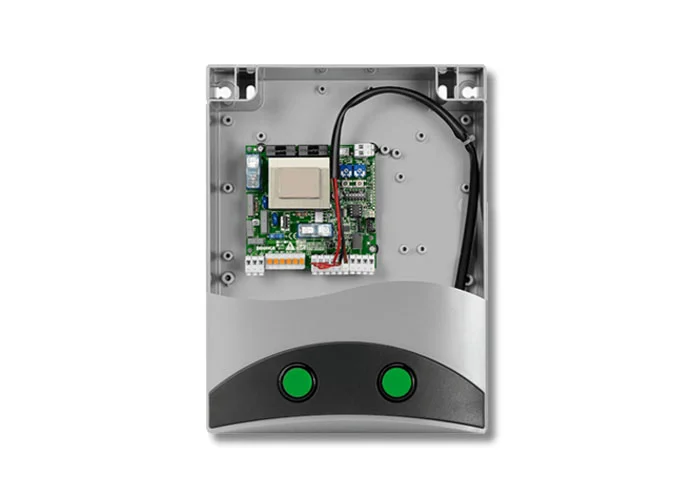

BENINCA - 230 VAC CONTROL UNIT FOR 1 ACTUATOR FOR INDUSTRIAL SLIDING GATES, FOLDING DOORS WITH MORE THAN 2 SECTIONS AND SHUTTERS
- PARAMETER AND OPERATION LOGIC REGULATIONS THROUGH TRIMMERS AND DIP-SWITCHES
- INTEGRATED 433.92 MHZ 64-CODE RADIO RECEIVER WITH 3 ENCODING SYSTEMS (ADVANCED ROLLING CODE, ROLLING CODE, FIXED CODE)
- REMOVABLE TERMINAL BOARDS
- AUTOMATIC, SEMI-AUTOMATIC AND DEADMAN’S LOGIC | MOTOR LIMIT SWITCH INPUTS
- INPUT FOR N.C OR 8K2 SENSITIVE EDGE OR PHOTOCELL
- INPUTS FOR BUTTONS TO OPEN, PROGRAMMABLE AS STEP BY STEP, AND CLOSE - OUTPUT FOR GATE OPEN INDICATOR
- ELECTRONIC TORQUE ADJUSTMENT FOR MOTOR ON 5 LEVELS
- POSSIBILITY TO MANAGE RADIO TRANSMITTERS MEMORISED ON INTEGRATED RECEIVER WITH ADVANTOUCH SYSTEM
CONTROL UNIT POWER SUPPLY: 230 Vac
MOTORS POWER SUPPLY: 230 Vac 750W
CONTROL UNIT
CELL.P 9176142
