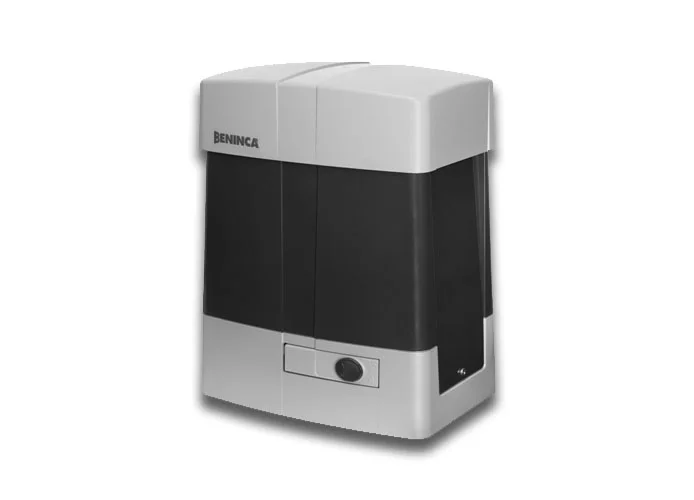

BENINCA - 230V REVERSIBLE GEARMOTOR FOR SLIDING GATES UP TO 1400KG.
- SUITABLE FOR VERY INTENSIVE USE FOR INDUSTRIAL/CONDOMINIUM INSTALLATION
- BUILT-IN CONTROL UNIT AND ENCODER
- SELF-VENTILATED FOR GREATER INTENSITY OF USE
- EQUIPPED WITH ELECTRO-BRAKE ON OPENING AND CLOSING, IDEAL FOR CONDOMINIUM USE
- THE ENCODER DEVICE ENSURES MAXIMUM SAFETY AND PRECISION IN THE GATE MOVEMENT PHASES
- FOUNDATION PLATE WITH ANCHOR BOLTS INCLUDED. MOTOR AND FLOOR BRACKET 269X106 MM N.4 Ø 12 MM.
BENINCA - BULL HE REVERSE
TECHNICAL FEATURES:
MOTOR POWER SUPPLY: 230VAC
MAINS POWER SUPPLY: 230VAC (50-60HZ)
MAXIMUM CURRENT ABSORBED: 3 A
TORQUE: 550 N
OPENING TIME: 13.5 M/MIN
WORKING CYCLE: 80%
PROTECTION INDEX: IP44
LUBRICATION: GREASE
PINION FOR RACK: M4 Z14
OPERATING TEMPERATURE: -20°C /+50°C .
