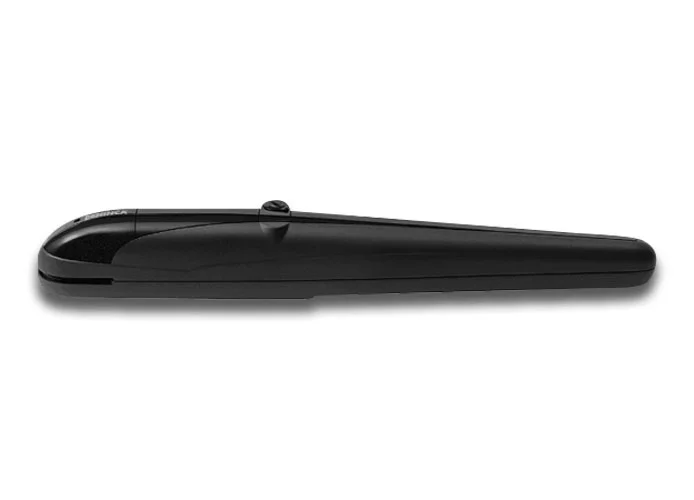

BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR 24VDC FOR LEAF UP TO 2,1M.
- FOR INTENSIVE USE
- ANTI-CRUSHING SYSTEM WITH AMPEROMETRIC DETECTION
- POSSIBILITY OF OPERATION VIA BATTERIES
- QUICK INSTALLATION THANKS TO TWO ADJUSTABLE MECHANICAL STOPS FOR OPENING AND CLOSING
- ROLLED BALL SCREW Ø 20 MM
- SET-UP FOR CONTROL UNIT MANAGEMENT VIA THE BEUP APP AND PRO.UP ACCESSORY WHICH, BY RECREATING THE CONTROL UNIT MENU, ALLOWS YOU TO ADJUST PARAMETERS, LOGIC,
READ ERROR MESSAGES AND UPDATE FIRMWARE.
BENINCA - BOB2124.DK
TECHNICAL DETAILS:
MOTOR POWER SUPPLY: 24 VDCMAXIMUM CURRENT ABSORBED: 5,5 A
MAXIMUM PUSH :1500 N
OPENING TIME: 12"
STANDARD STROKE :270 MM
MAXIMUM STROKE: 325 MM
WORKING CYCLE: INTENSIVE USE
INDEX OF PROTECTION: IP44
OPERATING TEMPERATURE: -20°C /+50°C
MAX. LEAF LENGTH: 2,1 M.
