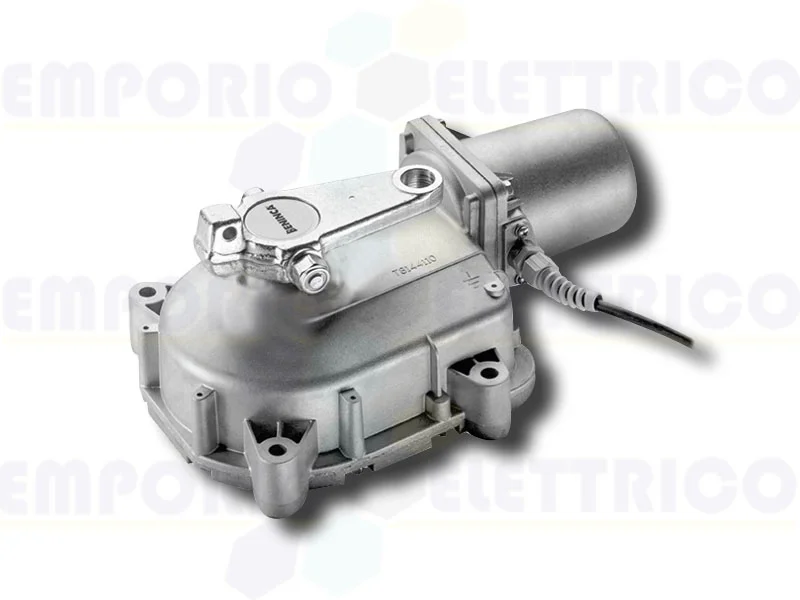

BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR 230V, FOR SWING GATES, WITH LEAVES UP TO 3.5 M.
- UNDERGROUND INSTALLATION
- POSSIBILITY OF OPENING UP TO 180°
- ALL-METAL MECHANICS AND BUILT-IN MECHANICAL STOP

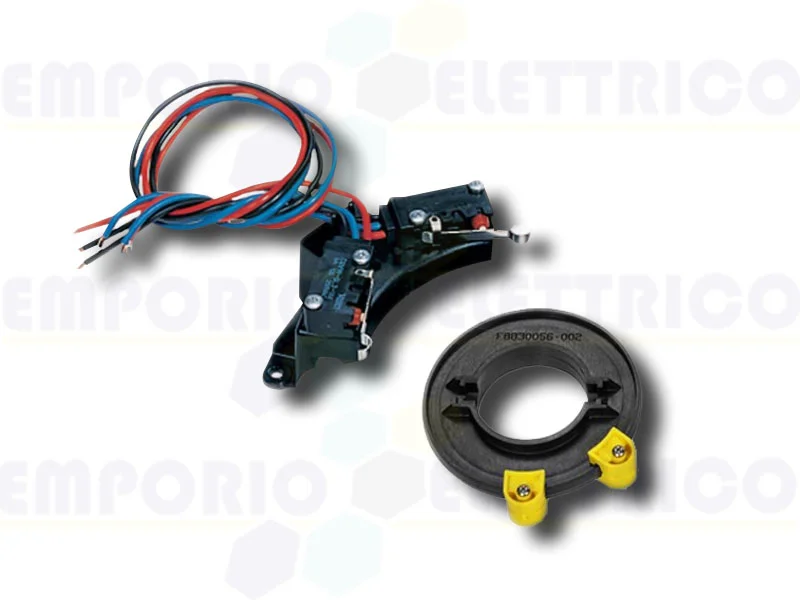

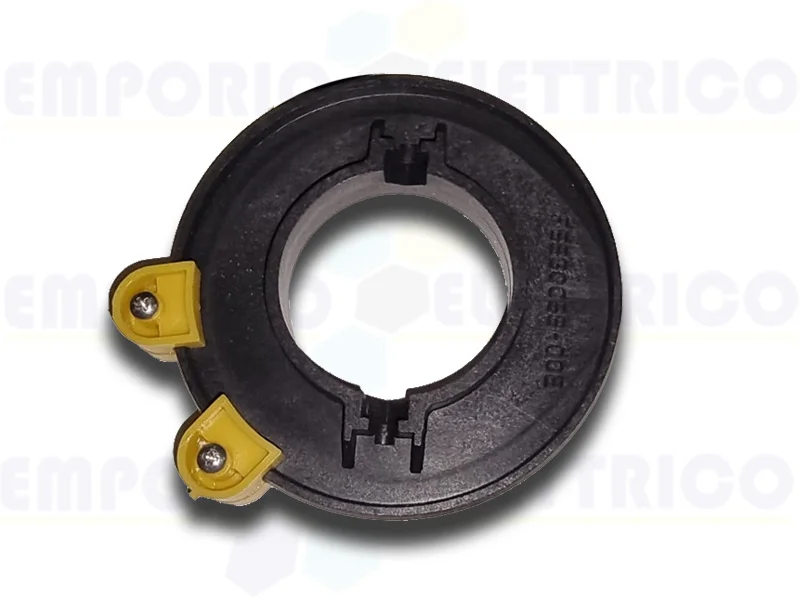

- CAM DISK INCLUDED.
SWING GATE GEARMOTOR
DU.IT14N 9590162
230V AC
TECHNICAL DATA
NETWORK SUPPLY: 230 Vac (50-60Hz)
MOTOR SUPPLY: 230 Vac
MAXIMUM CURRENT: 1,6 A
COUPLE: 370 Nm
OPENING TIME: 22''
WORKING CYCLE: 30%
PROTECTION INDEX: IP67
OPERATING TEMPERATURE: + 20°C / +50°C.
