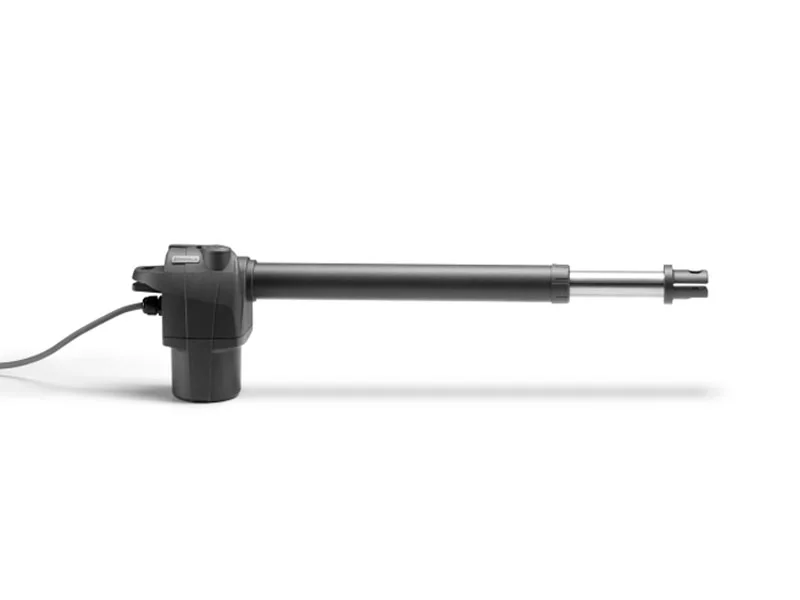

BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR 230V FOR SWING GATES UP TO 2.5 M
- IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR 230V WITH EASY-ACCESS RELEASE FROM ABOVE
- BASIC DESIGN AND LINES, PARTICULARLY SUITABLE FOR WROUGHT IRON GATES
- EASY AND QUICK TO INSTALL THANKS TO COMPACT DIMENSIONS AND INSTALLATION DIMENSIONS
- ENDLESS SCREW PROTECTED BY A SCRAPER RING AND A STAINLESS STEEL STEM THAT MAKE IT SUITABLE ALSO FOR DUSTY, SANDY OR AGGRESSIVE ATMOSPHERIC CONDITIONS.
GEARMOTOR FOR SWING GATES
BILL30M SX 9592101
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 1,1 A
MAXIMUM THRUST: 2800 N
OPENING TIME: 16”
WORKING CYCLE: 30%
STANDARD STROKE: 300 mm
MAXIMUM STROKE: 320 mm
INDEX OF PROTECTION: IP54
OPERATING TEMPERATURE: -20°C /+50°C
