BENINCA - SINGLE PHASE 230 VAC GEARED MOTOR FOR INDUSTRIAL USE FOR SLIDING GATES UP TO 1700 KG
- THE MAIN CONTROL UNIT, LOCATED IN THE TOP PART OF THE MOTOR
AND WITH INTEGRATED INVERTER, MAKES IT POSSIBLE TO CALCULATE
THE POSITION OF THE MOTOR STARTING FROM THE MEASUREMENT
OF CURRENT INTENSITY ON THE ELECTRIC MOTOR (VIRTUAL ENCODER)
- OIL LUBRICATION GUARANTEES MAXIMUM DURATION OF THE REDUCER.
THE TYPE OF OIL IS VERY EFFECTIVE AND GUARANTEES EXCELLENT
PERFORMANCE EVEN AT LOW TEMPERATURES
- REDUCED MECHANICAL WEAR OF COMPONENTS
- THE VIRTUAL ENCODER ALLOWS PROPER MANAGEMENT OF THE SLOWING-DOWN PHASES, MOVEMENT TRACKING (STC SYSTEM),
AND TORQUE MANAGEMENT IN RELATION TO THE POSITION OF THE GATE, WHICH GUARANTEES MAXIMUM SAFETY
- ADJUSTABLE SPEED FROM 10 TO 24 M/MIN ACCORDING TO GATE WEIGHT
- SAFETY SENSOR THAT STOPS THE MOTOR POWER SUPPLY DURING RELEASE OPERATIONS
- RECEIVER ONE2.WI IS SUPPLIED
- METAL RELEASE LEVER

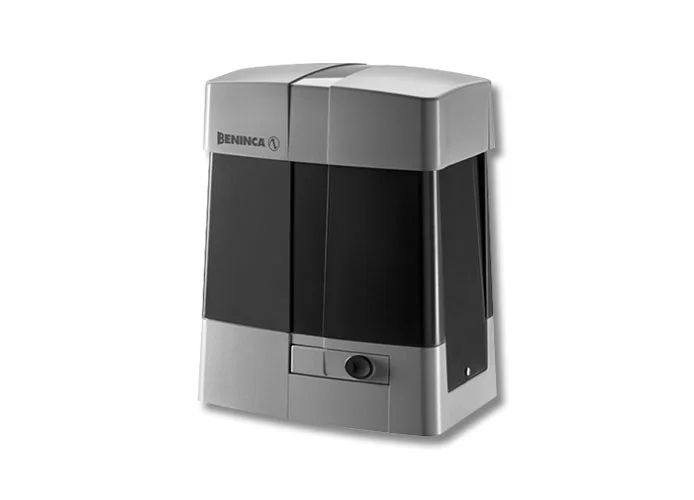

GEARED MOTOR FOR SLIDING GATES
BULL17 OMI 9592569
TECHNICAL DETAILS:
Power supply: 230 Vac (50-60Hz)
Motor supply: 230 Vac
Max absorbed current: 7 A
Max thrust: 1880 N
Max opening speed: 24 m/min
Duty cycle: 80% (in extreme operating conditions the cycle falls to 40%)
Protection level: IP44
Magnetic limit switches: NO
Operating temperature: -20°C /+50°C
Lubrification: OIL
