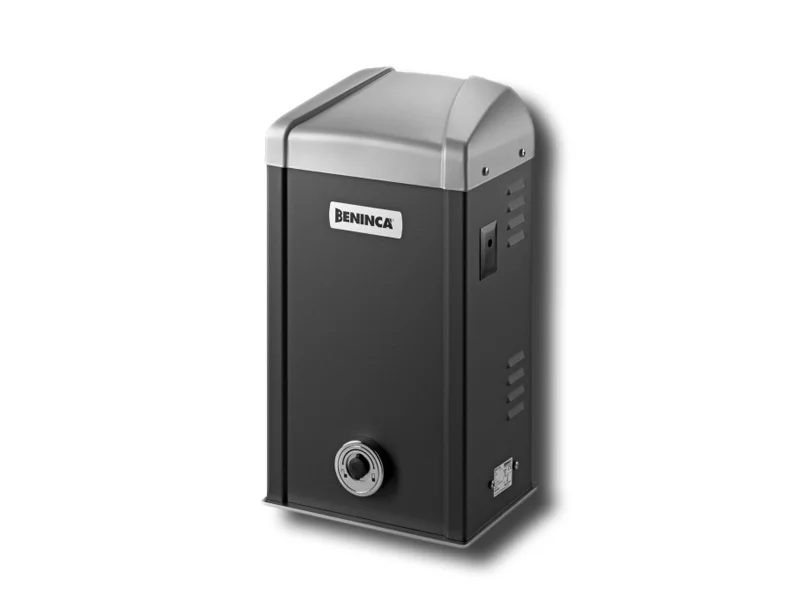

BENINCA - THREE PHASE 230 VAC GEARED MOTOR, VENTILATED FOR INTENSIVE USE, UP TO 2500KG
- CONTROL UNIT WITH BUILT-IN RECEIVER, MAGNETIC ENCODER AND INVERTER
- FULL METAL MECHANICS AND OIL LUBRICATION
- OIL LUBRICATED REDUCTIONS
- THE ENCODER DEVICE ENSURES PRECISION IN THE GATE MOVING PHASES
- CASING PROTECTIVE TREATMENT AND PAINT
- THE INVERTER TECHNOLOGY ALLOWS FOR MORE PRECISE ADJUSTMENT OF THE GATE MOVING PHASES, AND INCREASED CRUSH PREVENTION SECURITY
- IP68 LIMIT SWITCH
- PERSONALISED RELEASE KEY
THREE PHASE GEARED MOTOR
BISON25 OTI 9591449
TECHNICAL DETAILS:
MAINS SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAX CURRENT: 8 A
MAXIMUM THRUST: 2500 N
OPENING TIME: 19 m/min
WORKING CYCLE: intensive use
INDEX OF PROTECTION: IP44
OPERATING TEMPERATURE: -20°C /+50°C
LUBRICATION: OIL
