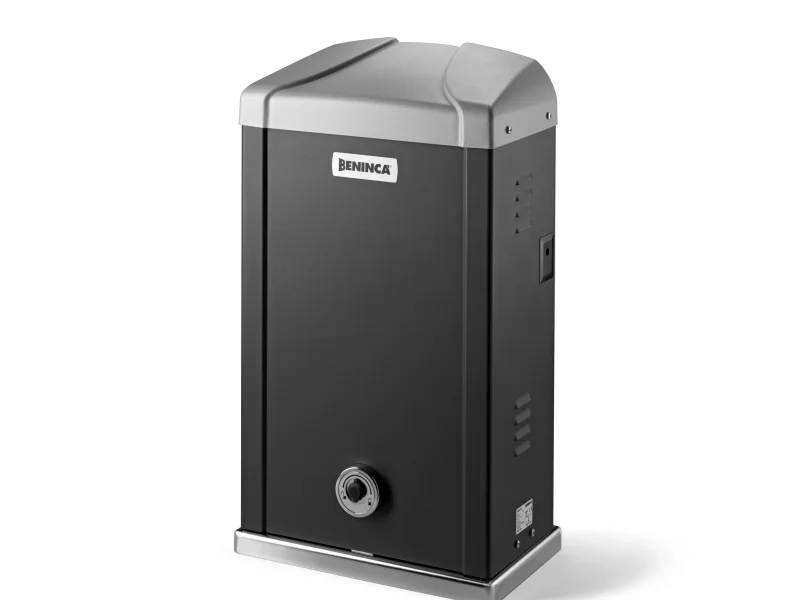

BENINCA - THREE PHASE 400 VAC GEARED MOTOR, VENTILATED FOR INDUSTRIAL USE FOR SLIDING GATES, UP TO 4500KG
- SECURITY SENSOR WHICH INTERRUPTS THE MOTOR POWER SUPPLY DURING RELEASE OPERATIONS
- THE ENCODER DEVICE ENSURES PRECISION IN THE GATE MOVING PHASES
- FULL METAL MECHANICS AND OIL LUBRICATION. THE TYPE OF OIL USED ENSURES MAXIMUM EFFICIENCY EVEN AT LOW TEMPERATURES
- CASING PROTECTIVE TREATMENT AND PAINT
- THE INVERTER TECHNOLOGY ALLOWS FOR MORE PRECISE ADJUSTMENT OF THE GATE MOVING PHASES, AND INCREASED CRUSH PREVENTION SECURITY
- IP68 LIMIT SWITCH
- PERSONALISED RELEASE KEY
FOUNDATION PLATE NOT INCLUDED
THREE PHASE GEARED MOTOR
BISON45 OTI 9592183
TECHNICAL DETAILS:
MAINS SUPPLY: 400 Vac (50-60Hz)
MOTOR POWER SUPPLY: 400 Vac
MAX CURRENT: 2,85 A
MAXIMUM THRUST: 5000 N
OPENING TIME: 19 m/min
WORKING CYCLE: intensive use
INDEX OF PROTECTION: IP44
OPERATING TEMPERATURE: -20°C /+50°C
LUBRICATION: OIL
