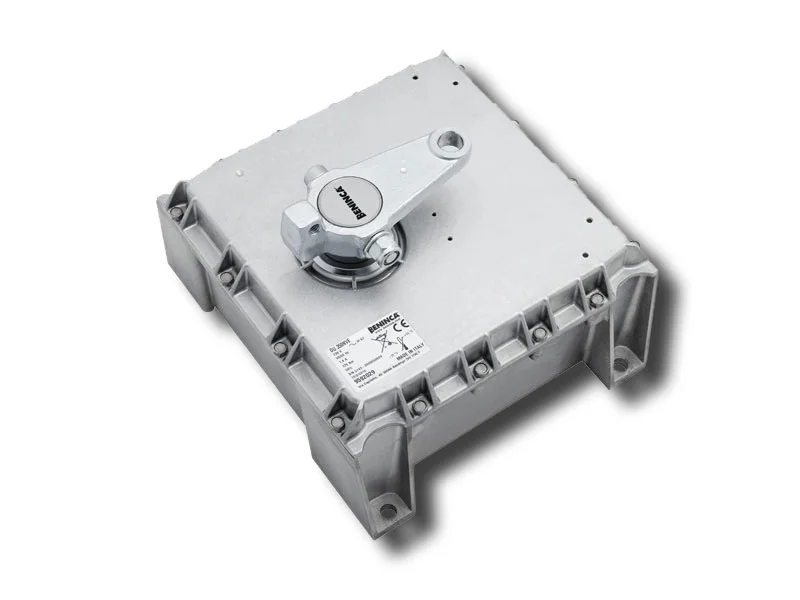

BENINCA - IRREVERSIBLE ELECTROMECHANICAL GEARMOTOR FOR SWING GATES WITH LEAVES UP TO 4 MT
-OIL-DYNAMIC ACTUATOR
- UNDERGROUND INSTALLATION
- BUILT-IN AND ADJUSTABLE MECHANICAL STOP
- EQUIPPED WITH CAST IRON GEAR WHEEL
- EQUIPPED WITH THE ENCODER THAT ENSURES CRUCH PREVENTION AND PRECISION IN THE GATES MOVING PHASES
CAMME DISC FOR OPTIONAL LIMIT SWITCH USE NOT INCLUDED
UNDERGROUND GEARMOTOR FOR SWING GATES
DU.350NGE 9592374
TECHNICAL DETAILS:
POWER SUPPLY: 230 Vac (50-60Hz)
MOTOR POWER SUPPLY: 230 Vac
MAXIMUM ABSORBED CURRENT: 1.7 A
TORQUE: 450 Nm
OPENING TIME: 22”DUTY CYCLE: INTENSIVE USE
PROTECTION INDEX: IP67
LUBRICATION: OIL
OPERATING TEMPERATURE: -20°C /+50°C
