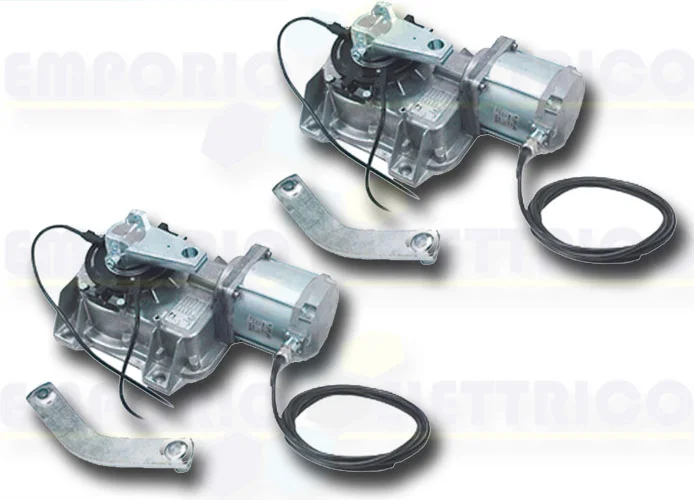

CAME - 2 IRREVERSIBLE UNDERGROUND 24 V WITH ADJUSTABLE LEAF-CLOSING GEARMOTORS FOR SWING GATES WITH UP TO 3,5 METRES PER LEAF THAT WEIGHS UP TO 400 KG
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
AUTOMATIC RE-ENGAGEMENT OF THE RELEASE SYSTEM AFTER MANUAL OPERATION OF THE GATE
PROVISION FOR OPERATION IN THE EVENT OF A POWER FAILURE
GEARMOTOR TESTED IN ACCORDANCE WITH EN12453 - EN12445 STANDARDS
90° MANOEUVRING TIME: ADJUSTABLE
PROTECTION LEVEL: 67
POWER SUPPLY: 24V DC
2 PIECES ARE INCLUDED
2 X 001FROG-A24 24V DC
Complementary accessories (not included):
- 002ZL170N: Control panel for single leaf gates with built-in radio decoding
- 002ZL19N: Control panel for two-leaf swing gates with built-in radio decoding
- 002LB18: Case with emergency card and provision for housing no. 3 batteries 12V 1.2Ah for control panels ZL170N and ZL19N
- 001FROG-CFN: Steel, cataphoresis treated foundation box
- 001FROG-CFNI: Foundation box made of AISI 304 steel
- 001A4364: Release device with lever key.
- 001A4365: Release device with trilobe key
- 001A4366: Release device with customized key and EURO-DIN cylinder
- 001A4370: Drive lever for openings of up to 140° and gate leaves of max. 2 m in length
- 001FL-180: Drive chain lever for up to 180° openings and gate leaves of max. 2 m in
length, FROG-A24 excluded
- 001LOCK81: Single cylinder electric lock
- 001LOCK82: Double cylinder electric lock
