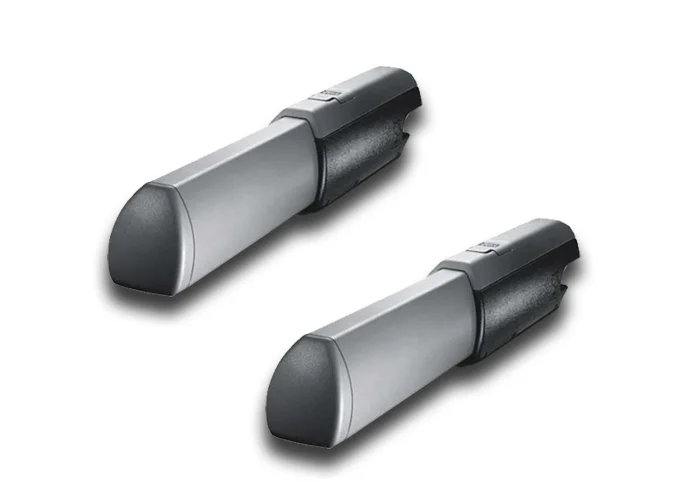

CAME - 2 x IRREVERSIBLE GEARMOTORS FOR SWING GATES UP TO 5 MT PER LEAF
OPENING TIME 90°: ADJUSTABLE
EQUIPPED WITH LIMIT SWITCH MICROSWITCH ON OPENING AND CLOSING
AMPEROMETRIC OBSTACLE DETECTION
MOTOR AND ENCODER MANAGEMENT WITH THREE-WIRE CABLE
PROVISION FOR OPERATION IN THE EVENT OF A BLACKOUT
SOLUTION FOR RESIDENTIAL AND CONDOMINIUM APPLICATIONS
POWER SUPPLY: 24V DC
(2 PIECES)
2 x 001A5024N 24V DC
complementary accessories (not included):
- ZL180 Control panel for swing gates with two leaves, with on-board radio decoding- LB180 Board to connect 2 emergency batteries 12V 1.2Ah with battery support bracket for control panel ZL180- LOCK81 Electric lock for single cylinder lock
- LOCK82 Electric lock for double cylinder lock
- D001 Lock cylinder with din key
- H3000 Safety container complete with release knob and command button for lanyard release L=5 mt
