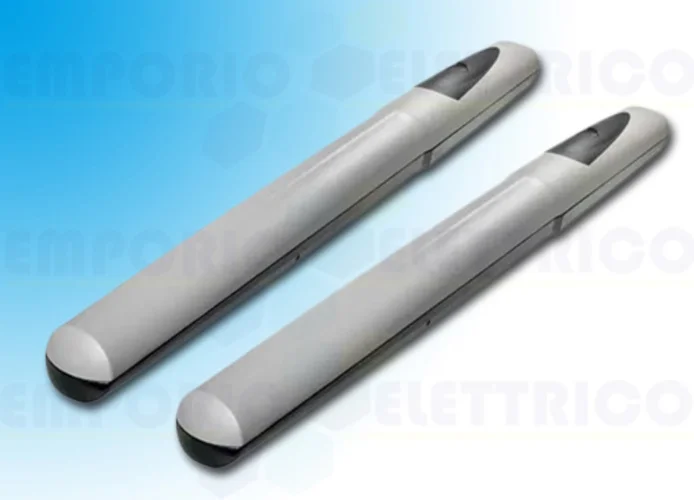

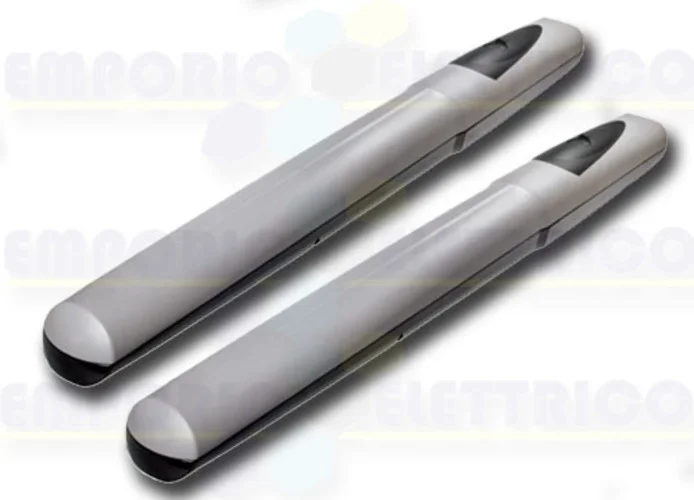

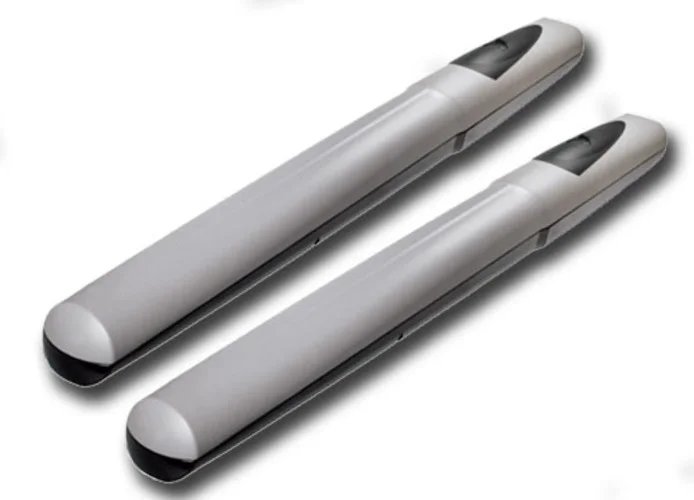

CAME - 2 x IRREVERSIBLE GEARMOTORS WITH ENCODER FOR SWING GATES UP TO 5 METRES PER LEAF, TESTED ACCORDING TO EN12453 - EN12445 STANDARDS
MOTOR AND ENCODER MANAGEMENT WITH THREE-WIRE CABLE
PRESSOFUSED ALUMINIUM SUPPORTING STRUCTURE
PROVISION FOR OPERATION IN THE EVENT OF A BLACKOUT
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE CONTROL VIA GATEWAY OR LOCALLY VIA CAME KEY
DOOR OPENING TIME AT 90°: ADJUSTABLE
POWER SUPPLY: 24V DC
(2 PIECES)
2 x 001AX5024 24V DC
| Type | Max widht per leaf | Max weight per leaf |
| AX302304 AX3024 | 2 m | 800 kg |
| 2,5 m | 600 kg |
| 3 m | 500 kg |
| - | - |
| - | - |
| - | - |
| - | - |
| AX402306 AX412306 | 2 m | 800 kg |
| 2,5 m | 600 kg |
| 3 m | 500 kg |
| 4* m | 300 kg |
| - | - |
| - | - |
| - | - |
| AX5024 | 2 m | 1000 kg |
| 2,5 m | 800 kg |
| 3 m | 700 kg |
| 4* m | 500 kg |
| 5* m | 400 kg |
| - | - |
| - | - |
| AX71230 | 2 m | 1000 kg |
| 2,5 m | 800 kg |
| 3 m | 700 kg |
| 4* m | 500 kg |
| 5* m | 400 kg |
| 6*° m | 350 kg |
| 7*° m | 300 kg |
| Type | Opening | A mm | B mm | C max mm | LM mm |
| AXO 3 | 90° | 130 | 130 | 70 | 800 |
| 120° | 150 | 100 | 50 | 800 |
| AXO 4 | 90° | 130 | 130 | 70 | 800 |
| 120° | 150 | 100 | 50 | 800 |
| AXO 5 | 90° | 200 | 220 | 150 | 1100 |
| 120° | 220 | 220 | 100 | 1100 |
| AXO 7 | 90° | 200 | 220 | 150 | 1100 |
| 120° | 220 | 220 | 100 | 1100 |
| * It is mandatory to provide an electric lock on the leaf. |
| º Gates longer than 5 m must not be panelled. In reversible versions, in the event of strong winds when the gate is open, the leaf may close again. |
| Type | AX302304 | AX402306-AX412306 | AX71230 | AX3024 | AX5024 |
| Degree of protection | IP44 | IP44 | IP44 | IP44 | IP44 |
| Power supply | 230V 50/60 Hz | 230V 50/60 Hz | 230V 50/60 Hz | 230V 50/60 Hz | 230V 50/60 Hz |
| Motor power supply | 220V | 230V | 230V | 24V | 24V |
| Absorption | 1,5 | 1,5 | 1,5 | 10 MAX | 10 MAX |
| Nominal power | 175W | 175W | 175W | 120W | 120W |
| Opening time (90°) | 20 | 28 | 40 | adjustable | adjustable |
| Intermittence work | 50 | 30 | 30 | intensive service | intensive service |
| Thrust | 500-4500N | 500-4500N | 500-4500N | 500-4500N | 500-4500N |
| Operating temperature | -20°C min / 55°C max | -20°C min / 55°C max | -20°C min / 55°C max | -20°C min / 55°C max | -20°C min / 55°C max |
| Motor thermoprotection | 150 | 150 | 150 | - | - |
Complementary accessory (not included):
- ZLJ24 control panel for two-leaf swing gates with built-in radio decoding
- ZLJ14 control panel for one leaf swing gates with built-in radio decoding
- LB90 board for connection of 2 emergency batteries 12V 1.2Ah with battery support bracket for control panel ZLJ14
- LB180 board for connection of 2 emergency batteries 12V 1.2Ah with battery support bracket for control panel ZLJ24
- LOCK81 electromechanical lock single cylinder
- LOCK82 electromechanical lock double cylinder
