came 230v gearmotor axo 001ax402306 ax402306

SKU: 001AX402306

£637.00  £474.50VAT INCLUDED

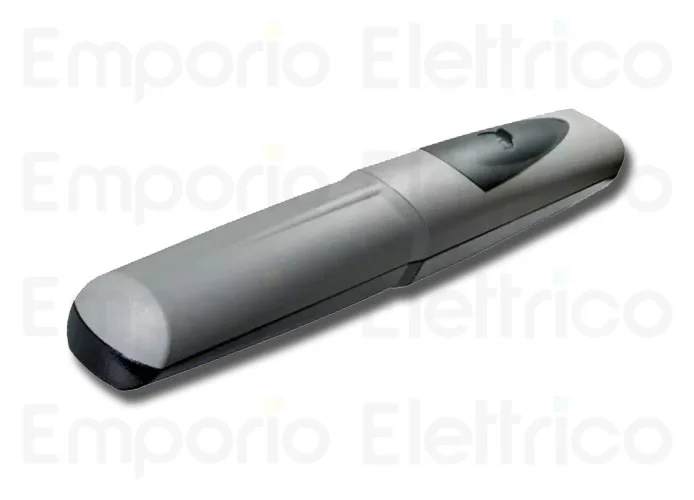

CAME - IRREVERSIBLE 230 V GEARMOTOR WITH ENCODER FOR SWING GATES WITH UP TO 4 M LEAVES THAT WEIGHS UP TO 300 KG
DIE-CAST ALUMINIUM STRUCTURE
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES

DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
90° OPENING TIME IN 28 SECONDS
SOLUTION FOR RESIDENTIAL AND CONDOMINIUM APPLICATIONS
POWER SUPPLY: 230V AC





001AX302306    230V AC


Type
Larghezza max anta
Peso max anta
AX302304 AX3024
2 m
800 kg
2,5 m
600 kg
3 m
500 kg
-
-
-
-
-
-
-
-
AX402306 AX412306
2 m
800 kg
2,5 m
600 kg
3 m
500 kg
4* m
300 kg
-
-
-
-
-
-
AX5024
2 m
1000 kg
2,5 m
800 kg
3 m
700 kg
4* m
500 kg
5* m
400 kg
-
-
-
-
AX71230
2 m
1000 kg
2,5 m
800 kg
3 m
700 kg
4* m
500 kg
5* m
400 kg
6*° m
350 kg
7*° m
300 kg

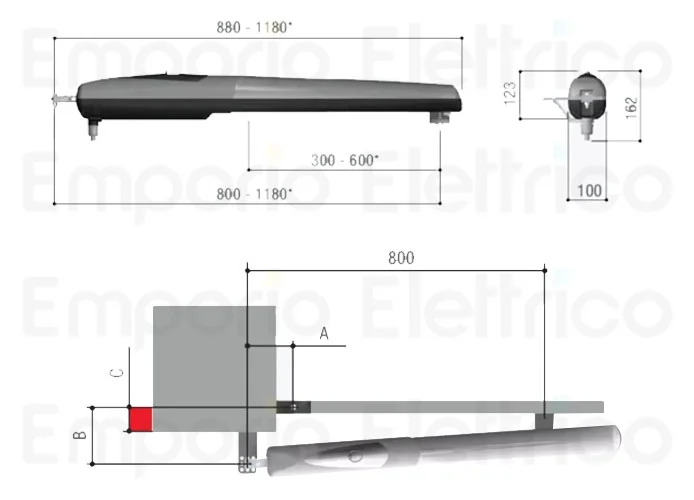

Type Opening
A mm
B mm
C max mm
LM mm
AXO 3
90°
130
130
70
800
120°
150
100
50
800
AXO 4
90°
130
130
70
800
120°
150
100
50
800
AXO 5
90°
200
220
150
1100
120°
220
220
100
1100
AXO 7
90°
200
220
150
1100
120°
220
220
100
1100



* It is mandatory to provide an electric lock on the leaf.
º Leaves longer than 5 m must not be panelled. In reversible versions, in the event of strong winds when the gate is open, the leaf may close again.



Type
AX302304
AX402306-AX412306
AX71230
AX3024
AX5024
Protection level
IP44
IP44
IP44
IP44
IP44
Power supply
230V 50/60 Hz
230V 50/60 Hz
230V 50/60 Hz
230V 50/60 Hz
230V 50/60 Hz
Motor power supply
220V
230V
230V
24V
24V
Absorption
1,5
1,5
1,5
10 MAX
10 MAX
Nominal power
175W
175W
175W
120W
120W
Opening time (90°)
20
28
40
adjustable
adjustable
Duty cycle
50
30
30
intensive use
intensive use
Thrust
500-4500N
500-4500N
500-4500N
500-4500N
500-4500N
Operating temperature
-20°C min / 55°C max
-20°C min / 55°C max
-20°C min / 55°C max
-20°C min / 55°C max
-20°C min / 55°C max
Motor's heat protection
150
150
150
-
-



Complementary accessories (not included):
- ZM3E Multifunction control panel for swing gates with two leaves, graphic programming and alerts display, plus self-diagnosing safety devices and on-board radio decoding
- LOCK81: Single cylinder electric lock
- LOCK82: Double cylinder electric lock
