came 24v gearmotor axo 001ax5024 ax5024

SKU: 001AX5024

£664.00  £491.36VAT INCLUDED

CAME - IRREVERSIBLE GEARMOTOR WITH ENCODER FOR SWING GATES UP TO 5 METRES PER LEAF, TESTED ACCORDING TO EN12453 - EN12445 STANDARDS
MOTOR AND ENCODER MANAGEMENT WITH THREE-WIRE CABLE
PRESSOFUSED ALUMINIUM SUPPORTING STRUCTURE
PROVISION FOR OPERATION IN THE EVENT OF A BLACKOUT
MECHANICAL, INTEGRATED AND ADJUSTABLE LIMIT SWITCHES
DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE CONTROL VIA GATEWAY OR LOCALLY VIA CAME KEY
DOOR OPENING TIME AT 90°: ADJUSTABLE
POWER SUPPLY: 24V DC



001AX5024       AX5024
24V DC



Type Max widht per leaf Max weight per leaf
AX302304 AX3024 2 m 800 kg
2,5 m 600 kg
3 m 500 kg
- -
- -
- -
- -
AX402306 AX412306 2 m 800 kg
2,5 m 600 kg
3 m 500 kg
4* m 300 kg
- -
- -
- -
AX5024 2 m 1000 kg
2,5 m 800 kg
3 m 700 kg
4* m 500 kg
5* m 400 kg
- -
- -
AX71230 2 m 1000 kg
2,5 m 800 kg
3 m 700 kg
4* m 500 kg
5* m 400 kg
6*° m 350 kg
7*° m 300 kg

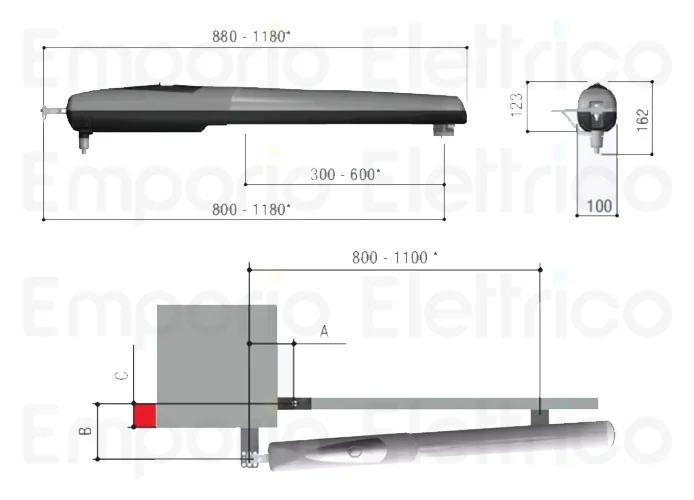

Type Opening A mm B mm C max mm LM mm
AXO 3 90° 130 130 70 800
120° 150 100 50 800
AXO 4 90° 130 130 70 800
120° 150 100 50 800
AXO 5 90° 200 220 150 1100
120° 220 220 100 1100
AXO 7 90° 200 220 150 1100
120° 220 220 100 1100



* It is mandatory to provide an electric lock on the leaf.
º Gates longer than 5 m must not be panelled. In reversible versions, in the event of strong winds when the gate is open, the leaf may close again.



Type AX302304 AX402306-AX412306 AX71230 AX3024 AX5024
Degree of protection IP44 IP44 IP44 IP44 IP44
Power supply 230V 50/60 Hz 230V 50/60 Hz 230V 50/60 Hz 230V 50/60 Hz 230V 50/60 Hz
Motor power supply 220V 230V 230V 24V 24V
Absorption 1,5 1,5 1,5 10 MAX 10 MAX
Nominal power 175W 175W 175W 120W 120W
Opening time (90°) 20 28 40 adjustable adjustable
Intermittence work 50 30 30 intensive service intensive service
Thrust 500-4500N 500-4500N 500-4500N 500-4500N 500-4500N
Operating temperature -20°C min / 55°C max -20°C min / 55°C max -20°C min / 55°C max -20°C min / 55°C max -20°C min / 55°C max
Motor thermoprotection 150 150 150 - -



Complementary accessory (not included):
- ZLJ24  control panel for two-leaf swing gates with built-in radio decoding
- ZLJ14 control panel for one leaf swing gates with built-in radio decoding
- LB90  board for connection of 2 emergency batteries 12V 1.2Ah with battery support bracket for control panel ZLJ14
- LB180  board for connection of 2 emergency batteries 12V 1.2Ah with battery support bracket for control panel ZLJ24
- LOCK81 electromechanical lock single cylinder
- LOCK82 electromechanical lock double cylinder
