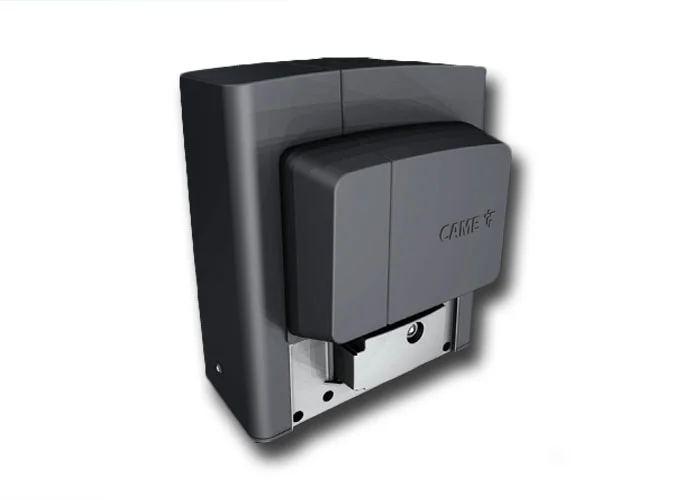

CAME - AUTOMATED OPERATOR WITH A CONTROL BOARD WITH PROGRAMMING DISPLAY, ON-BOARD RADIO DECODING AND MECHANICAL LIMIT-SWITCHES FOR SLIDING GATES UP TO 1200 kg OF WEIGHT AND 20M LONG
- ELECTRONIC BOARD WITH TERMINAL BLOCKS, DISPLAY AND STORAGE FOR UP TO 250 USERS
- CONFIGURABLE SAFETY INPUTS FOR DIRECT MANAGEMENT OF SENSITIVE RESISTIVE EDGES (8k2Ω)
- SELF-DIAGNOSIS OF SAFETY DEVICES
- DEVELOPED WITH CAME CONNECT TECHNOLOGY FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
- EQUIPPED WITH PINION MODULE 4
BK BKS12AGS 801MS-0080
230V AC
TECHNICAL DETAILS:
- DEGREE OF PROTECTION (IP) 44
- POWER SUPPLY (V - 50/60 HZ) 230 AC
- MOTOR POWER SUPPLY (V) 230 AC
- ABSORPTION (A) 3,3
- POWER (W) 380
- SPEED OF MANOEUVRING (M/MIN) 10,5
- CYCLES/HOUR 14
- THRUST (N) 850
- OPERATING TEMPERATURE(°C) -20 ÷ +55
- MOTOR THERMOPROTECTION (°C) 150
