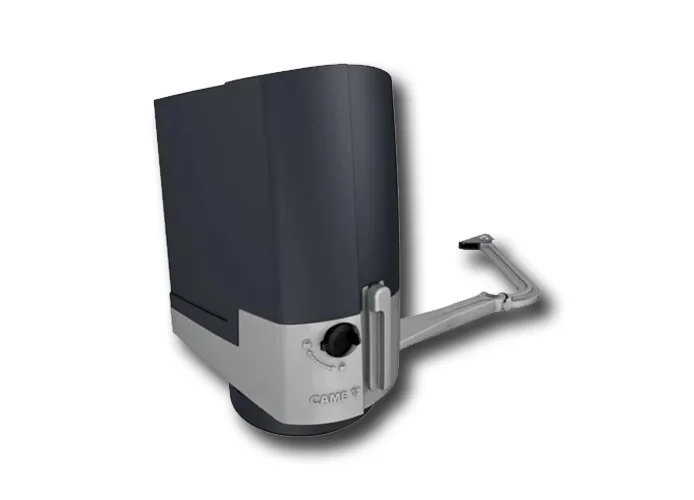

CAME - IRREVERSIBLE AUTOMATION FOR SWING GATES WITH LEAVES UP TO 2 METRES AND A WEIGHT OF 200 KG.
- SOLUTION FOR RESIDENTIAL AND CONDOMINIUM APPLICATIONS ON SMALL AND MEDIUM SIZED COLUMNS
- MOTION CONTROL BY ENCODER
- FAST VERSION
- COMPLETE WITH ELECTRONIC BOARD WITH FUNCTION DISPLAY, STORAGE FOR UP TO 250 USERS
- PROVISION FOR OPERATION IN THE EVENT OF A BLACKOUT
- SELF-DIAGNOSIS OF SAFETY DEVICES
- BUILT-IN RADIO DECODING
- ARTICULATED SWING ARM FOR SWING GATES WITH C MAX. 150 mm
- DEVELOPED WITH CONNECT TECHNOLOGY FOR DIGITAL REMOTE MANAGEMENT VIA GATEWAY OR LOCALLY VIA CAME KEY
- COVER GREY RAL7024.
AUTOMATION FTX
FTX20DGC 801MB-0130
24V DC
TECHNICAL FEATURES:
- DEGREE OF PROTECTION (IP) 44
- POWER SUPPLY (V - 50/60 HZ) 230 AC
- MOTOR POWER SUPPLY (V) 24 DC
- ABSORPTION (A) 4 MAX.
- POWER (W) 140
- 90° MANOEUVRING TIME (S) 13 TO 30
- CYCLES/HOUR 40
- THRUST (N) 180
- OPERATING TEMPERATURE (°C) -20 TO +55.
