came automation kit 801ms-0030 230v 001u2643 u2643

SKU: 001U2643

£1,373.70  £604.43VAT INCLUDED
0 days 8 hours 48 minutes remaining for expedited shipping

Maximum quantity of this item to benefit from Speedy delivery: 1


CAME AUTOMATION KIT BX-78, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445

COMPLETE SYSTEM FOR SLIDING GATES UP TO 800 KG

230V AC MOTOR

 001U2643    230V AC

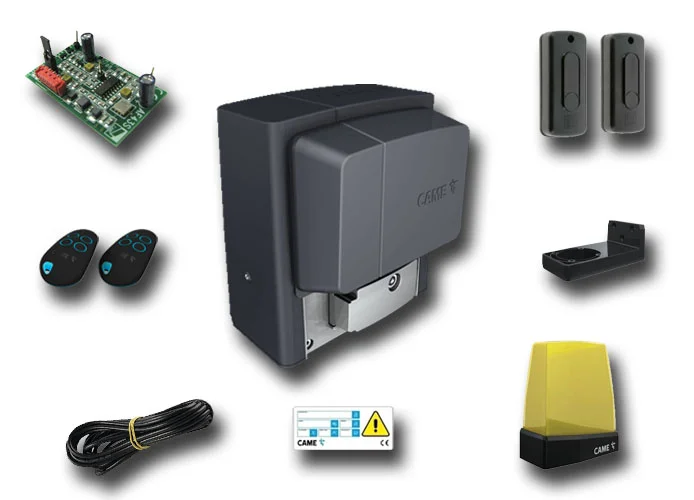

IT INCLUDES:
-  1
801MS-0030 (BX-78) Operator with control board, movement control and obstruction detecting
device and mechanical limit switches for sliding gates weighing up to 800
kg and measuring 14 m in length, 230V AC
-  1 AF43S Plug-in radio-frequency control card 433,92 MHz
-  2 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz

-  1 TOP-RG58 antenna cable
-  1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 m
- 1 806LA-0030: Led flashing light with power supply from 24 Vac-dc up to 230 Vac with yellow dome, double built-in antenna (433.92 MHz and 868.35 MHz)

-  1 806LA-0040 wall-fastening base for krx flashing lights
-  1 Gate plate

  • Brand: CAME
