came automation kit 801ms-0030 230v 001u2943 u2943

SKU: 001U2943

£1,417.20  £666.08VAT INCLUDED
0 days 6 hours 10 minutes remaining for expedited shipping

Maximum quantity of this item to benefit from Speedy delivery: 1


CAME AUTOMATION KIT BX-78, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445

COMPLETE SYSTEM FOR SLIDING GATES UP TO 800 KG

230V AC MOTOR

 001U2943    230V AC

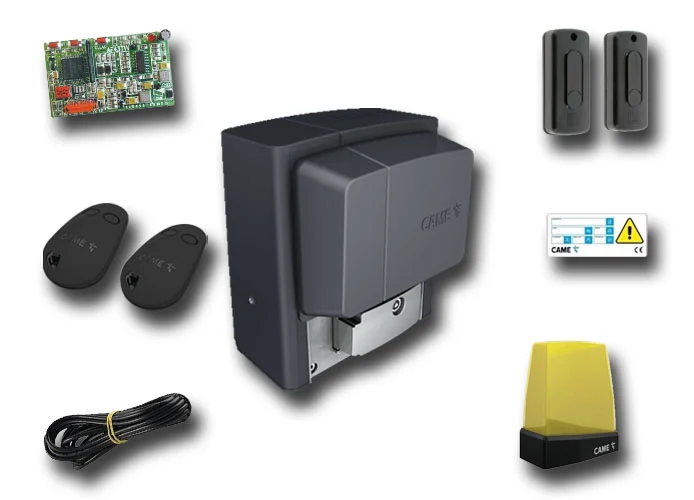

IT INCLUDES:
- 1 801MS-0030
 (BX-78) Operator with control board, movement control and obstruction detecting device and mechanical limit switches for sliding gates weighing up to 800 kg and measuring 14 m in length. 230V AC
- 1 AF43TW Plug-in radio-frequency control card 433,92 MHz
- 2 TWIN2 TW2EE Two-channel multiuser transmitter with self-learning function (16,777,216 in TAM mode, 4,096 combinations in TOP mode). 433,92 MHz
- 1 TOP-RG58 antenna cable 5 m
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells. Range 10 m
- 1 806LA-0030: Led flashing light with power supply from 24 Vac-dc up to 230 Vac with yellow dome, double built-in antenna (433.92 MHz and 868.35 MHz)

- 1 Gate plate

  • Brand: CAME
