CAME - AUTOMATION KIT BX 001U2313, WITH OPERATOR 801MS-0030 (EX BX-78), TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
5 METERS RACK IN NYLON WITH STEEL CORE 30X20 ARE INCLUDED
COMPLETE SYSTEM FOR SLIDING GATES UP TO 800 KG
230V AC MOTOR
KIT BX + 5 MT RACK IN NYLON WITH STEEL CORE 30X20
EMPU2313CREM5
230V AC

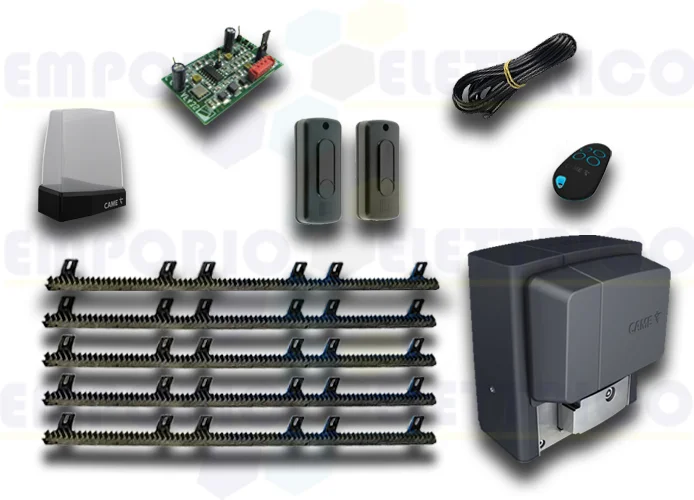

IT INCLUDES:
- 1 801MS-0030 BX708AGS (EX BX-78) Operator with control board, movement control and obstruction detecting device and mechanical limit switches for sliding gates weighing up to 800
kg and measuring 14 Mt in length, 230V AC
- 1 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 AF43S Plug-in radio-frequency control card 433,92 MHz
- 1 TOP-RG58 Antenna cable 5 Mt
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 Mt
- 1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 5 Meters module 4 rack in nylon 30x20 with steel core
- 1 Gate plate
