came automation kit fast70 24v 8k01mb-008

SKU: 8K01MB-008

£2,395.16  £1,451.47VAT INCLUDED

CAME - AUTOMATION KIT FOR FAST70 8K01MB-008, TESTED ACCORDING TO THE EN 12453-EN 12445 NORMS.

COMPLETE SYSTEM FOR TWO SWING-LEAVES UP TO 2,3 mt PER LEAF WITH 24 V DC MOTOR, MAXIMUM LEAF WEIGHT 200 KG


 801MB-0090
 801MB-0100



KIT FAST 70         8K01MB-008
24V DC

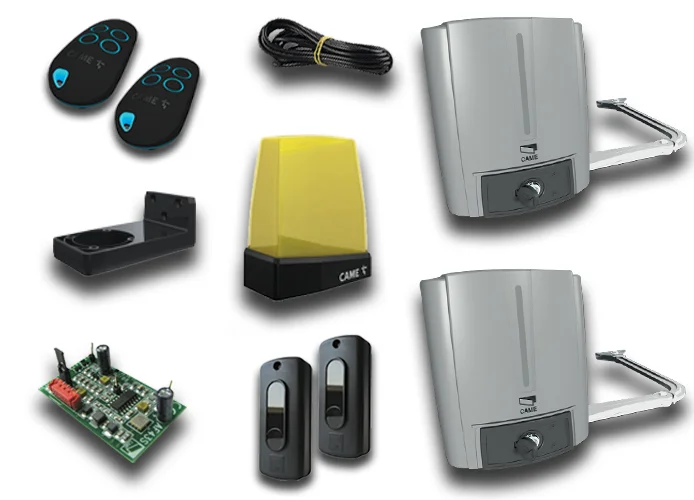

IT INCLUDES:
- 1 801MB-0090 FST23DLC Irreversible operator featuring a control board with functions display, on-board radio decoding and hinged transmission arm for swing gates with leaves each up to 2.3 m long and maximum. C-distance of 300 mm.
- 1 801MB-0100 FST23DLS Irreversible gearmotor with hinged transmission-arm for swing gates with leaves each up to 2.3 m long and maximum. C-distance of 300 mm.
- 1 AF43S Plug-in radio-frequency control card 433 MHz
- 1 TOP-RG58 antenna connection cable 5 mt
- 2 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 m.
- 1 806LA-0030 Led flashing light with power supply from 24 v ac - dc up to 230 v ac with yellow dome, double built-in antenna (433.92 mhz and 868.35 mhz)
- 1  806LA-0040 Wall-fastening base for krx flashing lights
- 1 Gate plate





- 1 TOP-RG58 cavo collegamento antenna 5 mt



  • Brand: CAME
