CAME- AUTOMATION KIT FROG-A 001U1910FR, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX. 3.5 MT PER LEAF
230V AC MOTOR
KIT FROG-A
001U1910FR U1910FR
230V AC

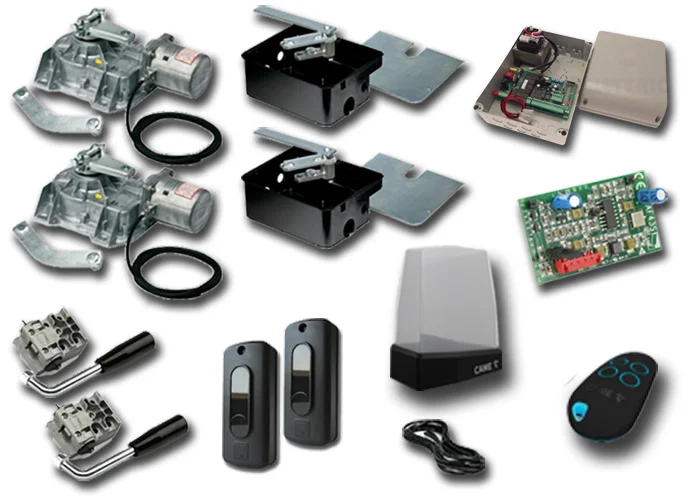

IT INCLUDES:
- 2 FROG-A Irreversible gearmotors for swing gates measuring up to 3.5 Mt per leaf, with adjustable closing leaf-stop 230V AC
- 2 FROG-CFN Foundation boxes with cataphoretic rustproof treatment, resetting release lever, gate fastening brace and screw for adjusting the opening limit-switch point
- 2 A4364 Release devices with lever key
- 1 ZA3P Multifunction control panel for swing gates with two leaves
- 1 AF43S Plug-in radio-frequency control card 433,92 MHz
- 1 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58 Antenna cable 5 Mt
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 Mt
- 1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 Gate plate
