came bpt color video and audio entry panel dvc/01 thangram 62020010

SKU: 62020010

£525.00  £429.66VAT INCLUDED

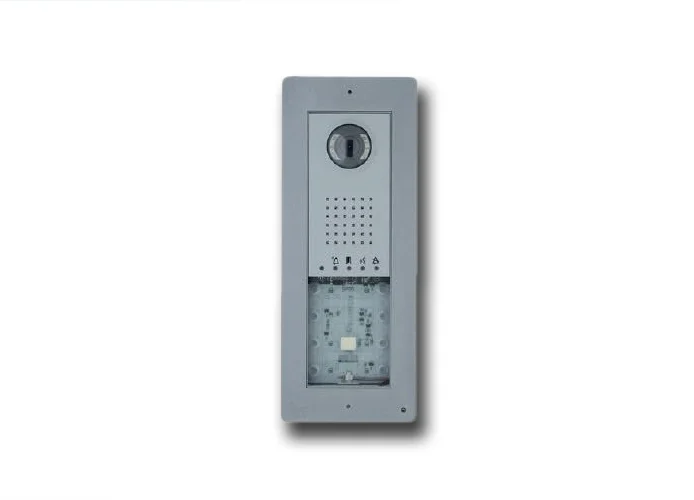

CAME BPT - COLOR VIDEO AND AUDIO ENTRY PANEL

SYSTEM X1

THERMOPLASTIC BODY FINISHED IN GREYHOUND GREY AND DÉCOR PANEL IN ALUMINIUM
CIRCUIT BOARD FOR X1 SYSTEM, MICROPHONE AND LOUDSPEAKER.
NTSC/PAL CAMERA SENSOR WITH 680X512 PIXEL RESOLUTION WITH INTEGRATED MICROPROCESSOR FOR DIGITAL SIGNAL TREATMENT, 100° HORIZONTAL OPENING ANGLE WITH DIGITAL ZOOM REGULATION
4 HIGH EFFICIENCY WHITE LEDS TO ENLIGHTEN THE SUBJECT
PROTECTION RATING IP54.
SIZE (LXHXP): 99X254X25 MM.
ADJUSTMENT OF MICROPHONE/LOUDSPEAKER VOLUME AND DOOR LOCK RELEASE TIME.
SIMPLE CONNECTION USING PRE-WIRED FLAT CABLES (SUPPLIED AS STANDARD) AND MINI USB CONNECTOR FOR PROGRAMMING WITH SOFTWARE TOOL.
LOCAL COMMAND FOR DOOR LOCK, INPUTS FOR DOOR LOCK RELEASE BUTTONS, DOOR STATUS SIGNALLING DEVICES, OUTPUT CONNECTOR FOR ACTIVATION OF EXTERNAL CAMERAS.
BLUE LEDS (8) FOR BACKLIGHTING OF KEYS WITH NAME LABEL.
LEDS FOR VISUAL CONTROL OF THE STATUS OF THE SYSTEM: RED "CALL CONNECTED" LED, GREEN "DOOR OPEN" LED, YELLOW "CALL IN PROGRESS" LED, BLUE "SYSTEM BUSY" LED.

DPS-DPH-DPD-DTS-DCOMBO-DNA ACCESSORIES ARE MISSING



DVC/01 THANGRAM      62020010

  • Brand: BPT
