CAME - CAME FROG-A AUTOMATION, TESTED ACCORDING TO EN 12453-EN 12445 STANDARDS
COMPLETE SYSTEM FOR SWING GATES UP TO 3,5 M PER LEAF, WITH 230V AC MOTOR
KIT FROG-AE 8K01MI-005FR
230V AC

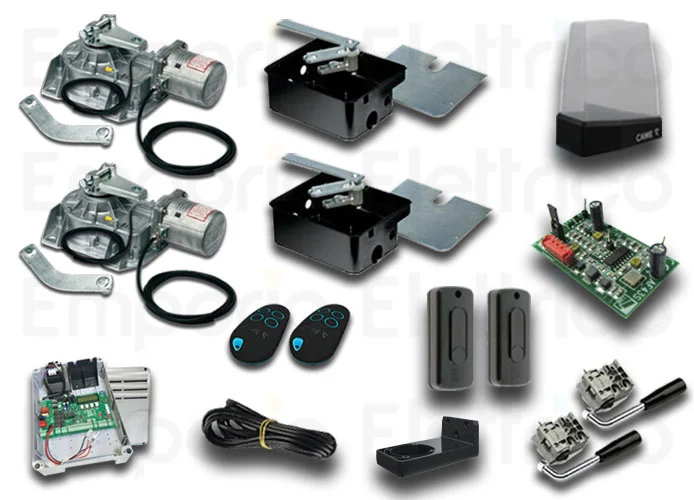

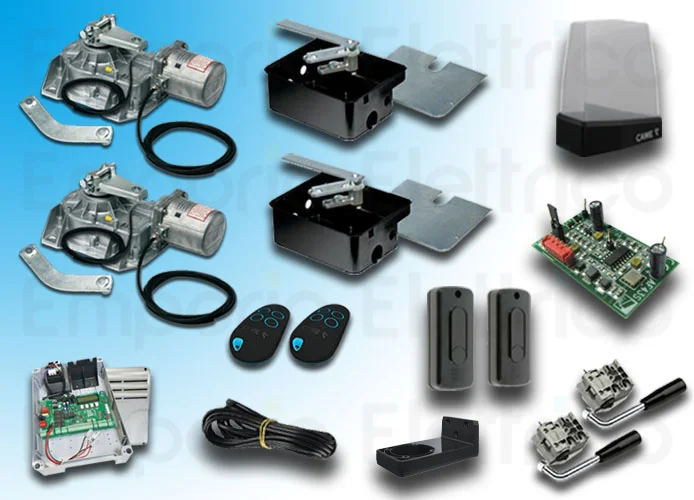

IT INCLUDES:
- 2 FROG-AE Irreversible gearmotors for swing gates of up to 3.5 Mt per leaf, with adjustable closing leaf-stop, with encoder, 230V AC
- 2 FROG-CFN Foundation boxes with cataphoretic rustproof treatment, resetting release lever, gate fastening brace and screw for adjusting the opening limit-switch point
- 2 A4366 Release device with customized key and EURO-DIN cylinder.
- 1 ZM3E Multifunction control panel for swing gates with two leaves, programming and alerts display, plus self-diagnosing safety devices
- 1 AF43S Plug-in radio-frequency control card 433.92 MHz
- 2 806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58 Antenna cable
- 1 DIR10 Pair of 12 - 24 V AC - DC outdoor photocells – range 10 Mt
- 1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 806LA-0040 Wall-fastening base for krx flashing lights
- 1 Gate plate
