came kit automation 001frog-a frog-a 230v type 3

SKU: EMPA0003T

£2,474.90  £1,678.55VAT INCLUDED

AUTOMATION KIT CAME FROG-A  type 3

TESTED ACCORDING TO STANDARDS EN 12453-EN 12445

COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 3,5 m PER LEAF
WITH 230 Vac MOTOR





001FROG-A  type 3    230V AC

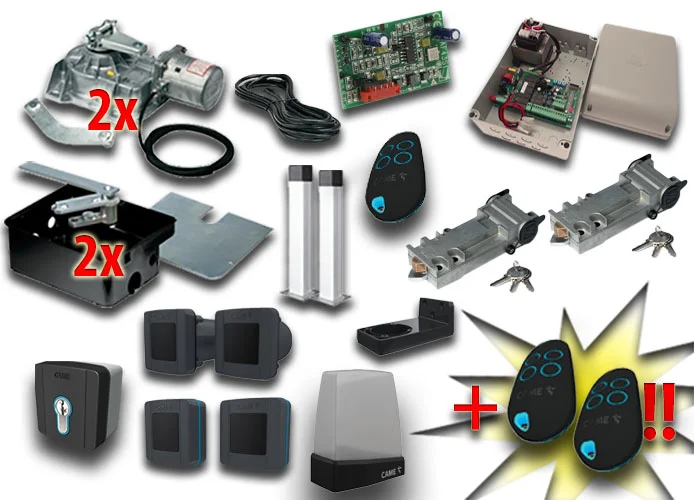

INCLUDES:

- 2  FROG-A  Irreversible gear motors for swing gates measuring up to 3.5 m per leaf, with adjustable closing leaf-stop
- 2  FROG-CFN  Foundation boxes with cataphoretic rustproof treatment, resetting release lever, gate fastening brace and screw for adjusting the opening limit-switch point
- 2  801XA-0030 Release devices with customized key and EURO-DIN cylinder
- 1  ZA3P  Multifunction control panel for swing gates with two leaves
- 1  AF43S Plug-in radio-frequency control card 433,92 MHz
- 3  806TS-0270 TOP44RBN 4-channel rolling code transmitter 433,92 MHz

- 1  TOP-A433N Antenna 433,92 MHz
- 1  TOP-RG58  Antenna cable 5 mt
-  1 806TF-0070 Pair of adjustable photocells with synchronised infrared ray for built-in installation. range: 30 metres (ex code 001delta-si / 001delta-i)
- 2  DOC-L  Anodized aluminum with natural finish post H=0,5 MT
- 1  SET-E  Surface-mounted key-switch selector with aluminum alloy casing and DIN lock
cylinder
-  1  806TF-0080 Pair of adjustable photocells with synchronised infrared ray for outdoor use. range: 30 metres (ex code 001delta-se 001delta-e)
-  1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
-  1 806LA-0040 Wall-fastening base for krx flashing lights
- 1  Gate plate

- 1  Gate plate

  • Brand: CAME
