AUTOMATION KIT CAME FROG-A type 3A
TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR SWING GATES WITH TWO LEAVES MEASURING MAX 3,5 m PER LEAF
WITH 230 Vac MOTOR
001FROG-A type 3A 230V AC

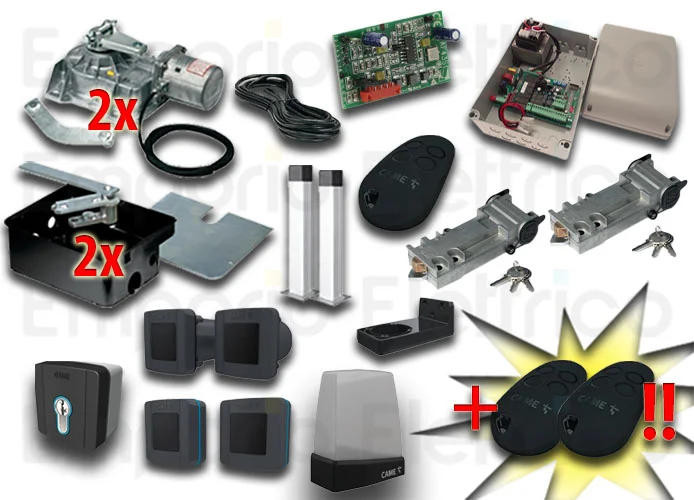

INCLUDES:
- 2 FROG-A Irreversible gear motors for swing gates measuring up to 3.5 m per leaf, with adjustable closing leaf-stop
- 2 FROG-CFN Foundation boxes with cataphoretic rustproof treatment, resetting release lever, gate fastening brace and screw for adjusting the opening limit-switch point
- 2 801XA-0030 Release devices with customized key and EURO-DIN cylinder
- 1 ZA3P Multifunction control panel for swing gates with two leaves
- 1 AF43S Plug-in radio-frequency control card 433,92 MHz
- 3 806TS-0310 4-channel transmitter with new fixed code encoding at 433.92 mhz top44fgn
- 1 TOP-RG58 Antenna cable 5 mt
- 1 806TF-0070 Pair of adjustable photocells with synchronised infrared ray for built-in installation. range: 30 metres (ex code 001delta-si / 001delta-i)
- 2 DOC-L Anodized aluminum with natural finish post H=0,5 MT
- 1 806SL-0050 Surface-mounted key-switch selector with din lock cylinder, blue retroillumination blu. cover grey ral7024
- 1 806TF-0080 Pair of adjustable photocells with synchronised infrared ray for outdoor use. range: 30 metres (ex code 001delta-se / 001delta-e)
- 1 806LA-0020 Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 806LA-0040 Wall-fastening base for krx flashing lights
- 1 Gate plate
