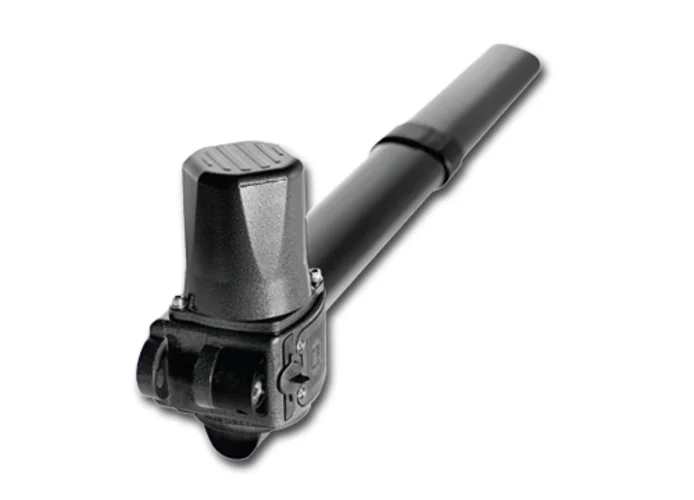

CAME - 230V AC LEFT-HAND IRREVERSIBLE GEARMOTOR FOR SWING GATES MEASURING OF UP TO 3 MT PER LEAF WITH MICRO-SWITCHES TO STOP THE LEAF
TO ESTABLISH THE RIGHT OR LEFT MOTOR, THE RULE IS TO LOOK FROM THE INSIDE OF THE PROPERTY TO THE OUTSIDE, AS IF YOU WERE GOING OUT.
- ADJUSTABLE OPENING/CLOSING MICROSWITCHES
- BUILT-IN EMERGENCY RELEASE LEVER
DEGREE OF PROTECTION: IP54
90° OPERATING TIME: 22 SECONDS
POWER SUPPLY: 230V AC
001KR310S KR310S
230V AC
| Type | KRONO 3 | KRONO 5 |
| Degree of protection | IP54 |
| Power supply | 230V 50/60 Hz |
| Motor power supply | 230V 50/60 Hz |
| Absorption | 1,1A |
| Nominal power | 130W |
| Work intermittence | 30% |
| Adjustable push | 400-3000N |
| Motor thermoprotection | 150°C |
| Opening time (90°) | 22s | 34s |
| Operating temperature | -20°C min / 55°C max |
| Type | Max. door width | Max. door weight |
KR300D
KR300S
KR310D
KR310S | 2 m | 800 kg |
| 2,5 m | 600 kg |
| 3 m | 400 kg |
KR510D
KR510S | 2 m | 1000 kg |
| 2,5 m | 600 kg |
| 3 m | 400 kg |
| 4 m | 500 kg |
| 5 m | 400 kg |
