came steel aisi barrier gard gt8 24v ggt80ax4 803bb-0250
SKU: 803BB-0250
£4,096.00 £3,067.49VAT INCLUDED

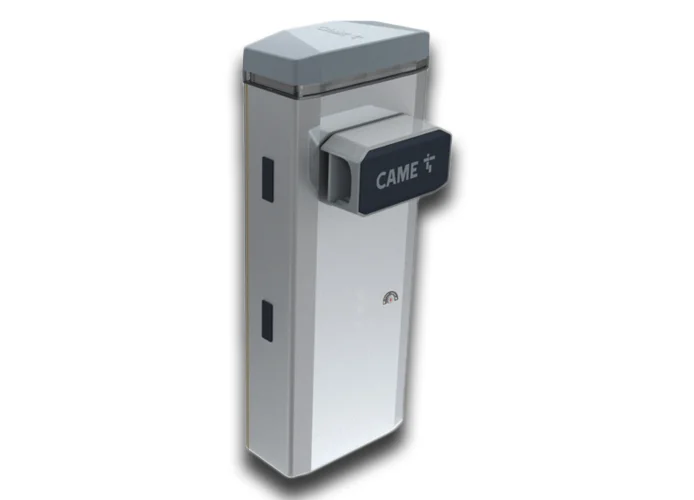

CAME - AUTOMATIC BARRIER WITH 24V DC IRREVERSIBLE GEARED MOTOR WITH ENCODER; SATIN-FINISHED AISI 304 STEEL CABINET WITH PROVISION FOR ACCESSORIES
- 24V DC GEARMOTOR WITH ADVANCED SPEED TECHNOLOGY
- ELECTRONIC BOARD WITH DISPLAY, CONNECT TECHNOLOGY AND INPUTS FOR CXN BUS ACCESSORIES
- ACCESSORIES CAN BE INTEGRATED DIRECTLY INTO THE CABINET
- HIGH-VISIBILITY RED/GREEN SIGNAL LEDS ON THE CROWN AND ON BOTH SIDES OF THE BAR
- CAN BE INTEGRATED WITH THIRD-PARTY SYSTEM VIA MODBUS PROTOCOL
BALANCING SPRING INCLUDED
BUILT-IN CONTROL PANEL
FROM 2021 IT REPLACES THE MODELS:
001G2080IZ GARD8 2080 BARR 230V 24V MOT SS
001G2080IE GARD8 2080 BARR 230V 24V MOT ENC SS
GGT80AX4
803BB-0250
24V DC
TECHNICAL DETAILS:
MAX. PASSAGE WIDTH: 7,8 METERS
DEGREE OF PROTECTION: IP54
POWER SUPPLY: 230V AC - 50/60 Hz
MOTOR POWER SUPPLY: 24V
THRUST: 300W
OPENING TIME AT 90°: 4/8 SECONDS
CYCLES/HOUR: 160
OPERATING TEMPERATURE (C°) -20° / +55°C
