came steel gard barrier gt4 24v ggt40ags 803bb-0160
SKU: 803BB-0160
£2,093.00 £1,567.45VAT INCLUDED

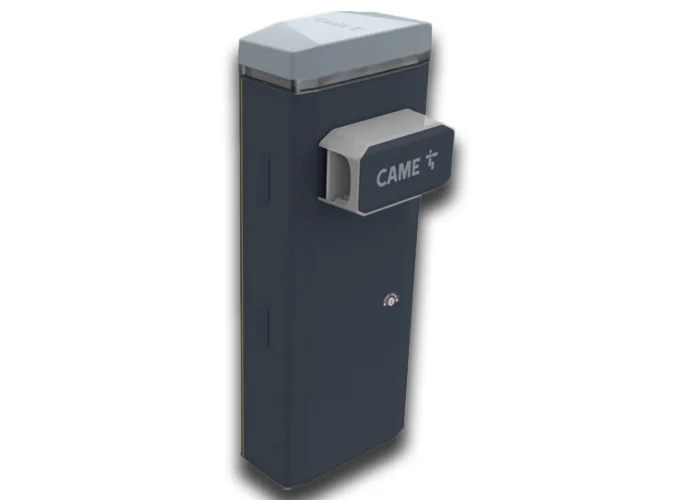

CAME - AUTOMATIC BARRIER WITH 24V DC IRREVERSIBLE GEARMOTOR WITH ENCODER; GALVANISED AND PAINTED STEEL CABINET WITH PROVISION FOR ACCESSORIES
- 24V DC GEARMOTOR WITH ADVANCED SPEED TECHNOLOGY
- ELECTRONIC BOARD WITH DISPLAY, CONNECT TECHNOLOGY AND INPUTS FOR CXN BUS ACCESSORIES
- ACCESSORIES CAN BE INTEGRATED DIRECTLY INTO THE CABINET
- HIGH-VISIBILITY RED/GREEN SIGNAL LEDS ON THE CROWN AND ON BOTH SIDES OF THE BAR
- CAN BE INTEGRATED WITH THIRD-PARTY SYSTEM VIA MODBUS PROTOCOL
BALANCING SPRING INCLUDED
BUILT-IN CONTROL PANEL
FROM 2021 IT REPLACES THE MODELS:
001G4040Z GARD4 4040 BARR 230V 24V MOT
001G4040E GARD4 4040 BARR 230V 24V MOT ENC
001G4040EZ GARD4 4040 BARR 230V 24V MOT ENC
001G4040EZT GARD4 4040 BARR 230V 24V MOT ENC HD
GGT40AGS
803BB-0160
24V DC
TECHNICAL DETAILS:
MAX. PASSAGE WIDTH: 4 METRES
DEGREE OF PROTECTION: IP54
POWER SUPPLY: 230V AC - 50/60 Hz
MOTOR POWER SUPPLY: 24V
THRUST: 240W
OPENING TIME AT 90°: 2/6 SECONDS
CYCLES/HOUR: 300
OPERATING TEMPERATURE (C°) -20° / +55°C
