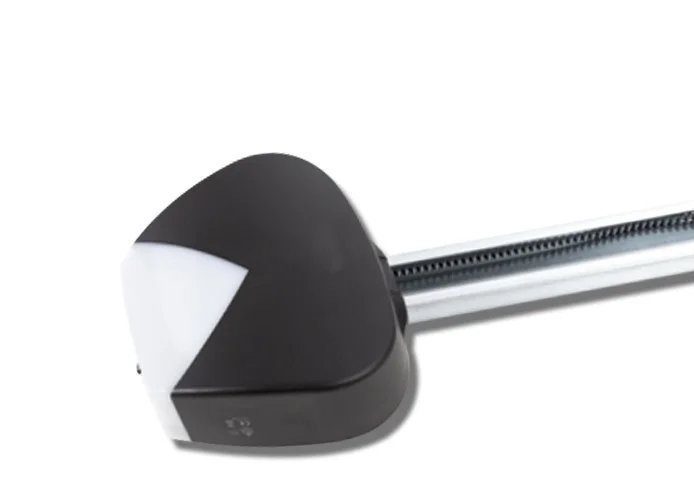

CARDIN - MASTER SELF-LOCKING ELECTROMECHANICAL UNIT
FOR RESIDENTIAL USE, WITH 24V MOTOR, ENCODER AND ELECTRONIC PROGRAMMER WITH LED COURTESY LIGHT
GEARMOTOR FOR SECTIONAL DOORS
GLZEN100E
24V
TECHNICAL FEATURES:
MOTOR POWER SUPPLY: 24Vdc
NOMINAL ABSORBED CURRENT: 5A
POWER CONSUMPTION: 130W
WORKING INTERMITTENCE: 60%
TRANSFER SPEED: 9m/min
THRUST FORCE: 1000N
MAXIMUM STROKE: 3900mm
OPERATING TEMPERATURE: -20°...+55°C
DEGREE OF PROTECTION: IP30
