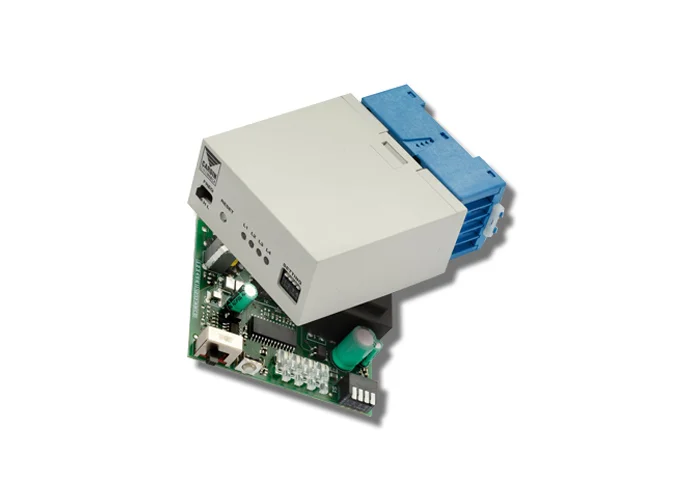

CARDIN - 230V SINGLE LOOP METAL MASS DETECTOR.
DEVICE SUITABLE FOR THE DETECTION OF METAL MASSES, USED ON SINGLE PASSAGES OR MULTI-USER CONTROLS ON SEVERAL STATIONS, AUTOMATIC CALIBRATION, SENSITIVITY ADJUSTMENT, RELAY OUTPUT WITH VARIOUS MODES.
THE SYSTEM CONSISTS OF 4 ELEMENTS:
- DETECTION EQUIPMENT ASSEMBLED IN A PROTECTIVE HOUSING;
- BASE FOR PANEL MOUNTING OR DIN46277 BAR MOUNTING (ONLY FOR METALDEC);
- SENSING ELEMENT (NOT SUPPLIED BY US) MUST BE MADE WITH TWO OR MORE MULTI-CORE CABLES IN THE MANNER AND SIZES DESCRIBED;
- TWO-CORE CABLE (NOT SUPPLIED BY US) FOR CONNECTION FROM THE SENSING ELEMENT TO THE EQUIPMENT.
METAL MASS DETECTOR 230V
METALDEC0230X
TECHNICAL FEATURES:
POWER SUPPLY: 230 Vac (50-60Hz) 35mA
SENSITIVITY: 8 LEVELS
RELAY OUTPUT: 2 (max. 1A 30V)
OPERATING TEMPERATURE: -20° +55°.
DEGREE OF PROTECTION: IP40.
