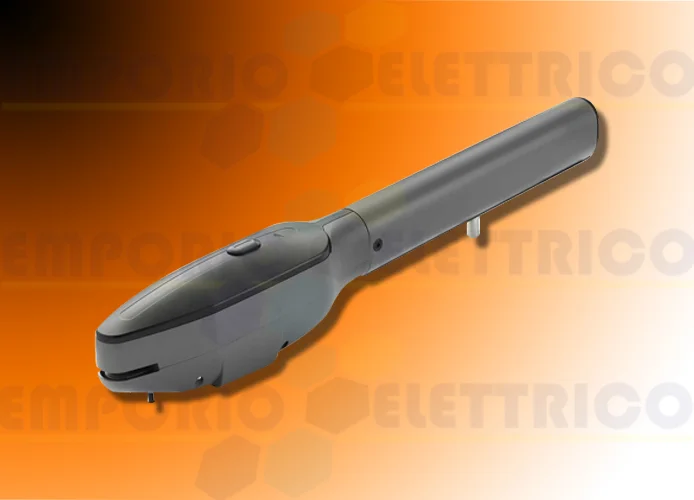

CARDIN - SELF-LOCKING REVERSIBLE ACTUATOR WITH ENCODER. SUPPLIED WITH MECHANICAL LIMIT SWITCHES, FOR LEAVES OF MAX. 5 M AND 300 KG
ELECTROMECHANICAL LOCK COMPULSORY TO ENSURE LOCKING OF THE LEAF WHEN CLOSING
CARDIN ELECTRONIC PROGRAMMER TO BE ORDERED SEPARATELY T624
GEARMOTOR FOR SWING GATES
BLADE524REV
24V
TECHNICAL FEATURES:
POWER SUPPLY: 24Vdc
ABSORPTION: 2A
ABSORBED POWER: 60W
PUSH: 1900N
SCREW THROW: 500mm
WORKING INTERMITTENCE: 70%
90° OPENING TIME: 20sec
MAXIMUM OPENING: 110°
DEGREE OF PROTECTION: IP44.
