CARDIN - 230V REVERSIBLE GEARMOTOR FOR ROLLING SHUTTERS WITH A LIFTING POWER OF 180KG
ELECTRIC LOCK REQUIRED TO ENSURE THAT THE ROLLING SHUTTER IS LOCKED WHEN CLOSING
RELIABLE AND PRECISE, THANKS TO INTEGRATED LIMIT SWITCHES, APPLIES TO ALL ROLLING SHUTTERS WITH A SHAFT DIAMETER OF 60MM OR 48MM AND WITH 200MM AND 220MM CROWN WHEELS
MAXIMUM ROLLING SHUTTERS HEIGHT 6M.

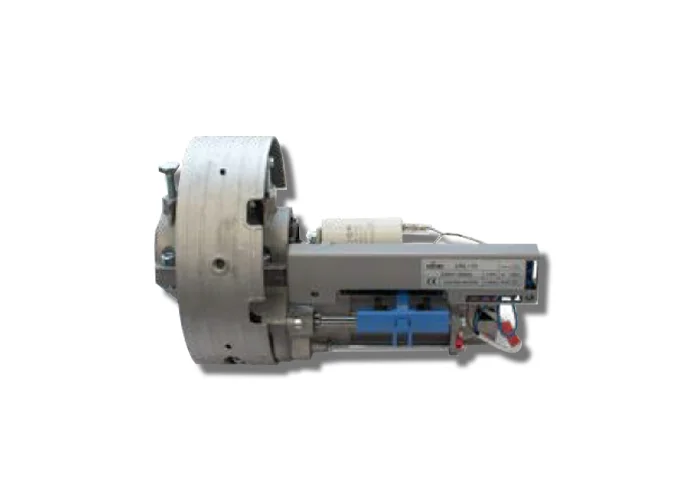

GEARMOTOR FOR ROLLING SHUTTERS
CRL 170
230V
TECHNICAL FEATURES:
MOTOR POWER SUPPLY: 230Vac
FREQUENCY: 50/60Hz
NOMINAL CURRENT ABSORBED: 2.56A
POWER CONSUMPTION: 590W
TORQUE: 180Nm
REDUCER SPEED: 10rpm
SHAFT: 48/60mm
CROWN: 200/220mm
WEIGHT: 8.5kg
