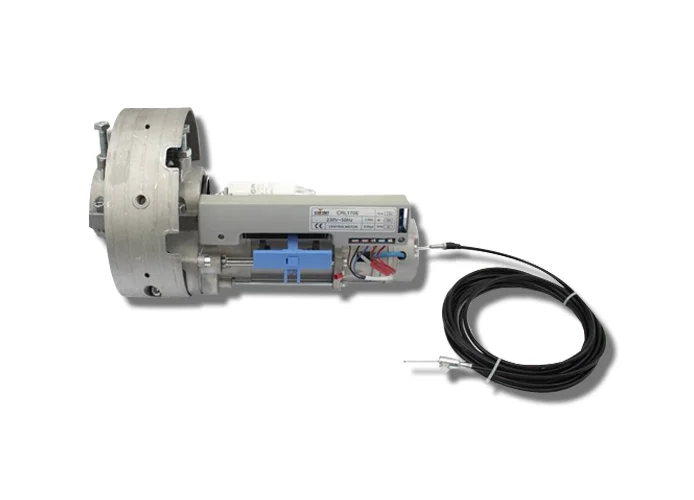

CARDIN - SELF-LOCKING GEARMOTOR FOR 230V ROLLING SHUTTERS WITH A LIFTING POWER OF 180KG.
RELIABLE AND PRECISE, THANKS TO THE LIMIT SWITCHES INTEGRATED IN THE STANDARD ELECTRO-BRAKE UNIT, IT CAN BE APPLIED TO ALL ROLLING SHUTTERS WITH A SHAFT DIAMETER OF 60MM OR 48MM AND WITH 200MM AND 220MM CROWN WHEELS.
MAXIMUM ROLLING SHUTTER HEIGHT 6M.
GEARMOTOR FOR ROLLING SHUTTERS
CRL 170 E
230V
TECHNICAL FEATURES:
MOTOR POWER SUPPLY: 230Vac
FREQUENCY: 50/60Hz
NOMINAL CURRENT ABSORBED: 2.56A
ABSORBED POWER: 590W
TORQUE: 180Nm
REDUCER SPEED: 10rpm
SHAFT: 48/60mm
CROWN: 200/220mm
WEIGHT: 9.5kg
