faac 230v oil-hydraulic automation kit 400 cbc ee104205kit
SKU: EE104205KIT
£2,999.00 £1,709.43VAT INCLUDED
FAAC - HYDRAULIC AUTOMATION KIT FOR SWING GATES WITH LEAVES UP TO 2.2 M
- SUITABLE FOR CONDOMINIUM AND RESIDENTIAL USE
- ACTUATOR RELEASE DEVICE PROTECTED BY KEY
- HYDRAULIC ACTUATOR WITH HYDRAULIC LOCK ON CLOSING
- SILENT MOVEMENT
AUTOMATION KIT 400 CBC
EE104205KIT
230V AC

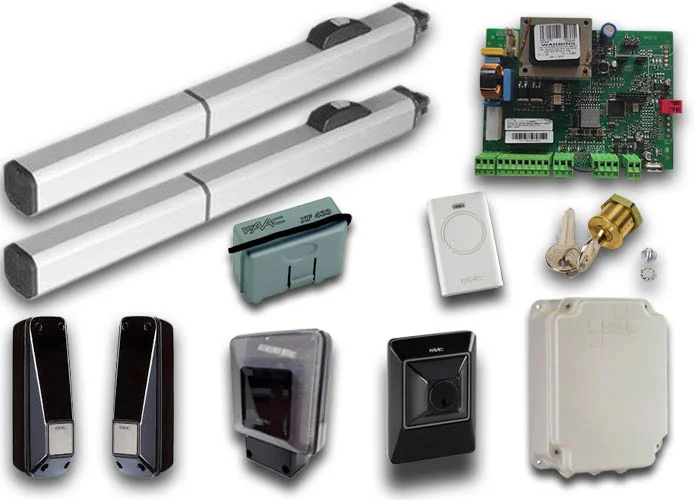

IT INCLUDES:
- 2 HYDRAULIC GEARMOTORS 400CBC 230V 104205
- 1 KEY AND CONTROL BUTTON XK10 B 401304
- 1 LOCK WITH CUSTOMISED KEY 71275101
- 1 TRASMITTER 2-CHANNEL XT2 433 SLH LR 787007
- 1 ELECTRONIC BOARD E045S 790077 (EX 790005)
- 1 MOD. E BOX FOR ELECTRONIC BOARD 720119
- 1 FLASHLIGHT XLED 410029
- 1 RECEIVER XF 433 MHZ 787831 (EX 319006)
- 1 PAIR OF PHOTOCELLS XP 20B D 785103
- 1 SIGNTECHNICAL DETAILS:
- MAINS SUPPLY VOLTAGE: 220-240V~ 50/60 HZ
- ELECTRICAL MOTOR: ASYNCHRONOUS SINGLE-PHASE
- MAX POWER: 220 W
- MAX. THRUST FORCE: 6200 N
- MAX SHAFT SPEED: 10 MM/S
- MOTOR-PUMP UNIT CAPACITY: 1 LPM
- ROD STROKE: 270 MM
- MAX OPENING LEAF ANGLE: 125°
- OPERATING TEMPERATURE: -20°C ÷ + 55°C
- THERMAL PROTECTION: 120°C
- DEGREE OF PROTECTION: IP55- WEIGHT: 8,6 KG
- USE FREQUENCY: 70 CYCLES/HOUR
- MAX LEAF WIDTH: 2,20 M
- TYPE OF OIL: FAAC HP OIL
- ELECTRONIC EQUIPMENT: NOT INCLUDEDComplementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. L for electronic boards 720118
- container mod. LM for electronic boards 720309
- wall plate 737604
- SAFEcoder magnetic absolute encoder BUS (FAAC patented) 404040
- XF 433 MHz 787831 card receiver (EX 319006)
- two-channel transmitter XT2 433 SLH LR, 787007
- release lock with custom key from No. 1 to No. 36, 712501001/36
- mechanical stops ap/ch Positive stop 490042
