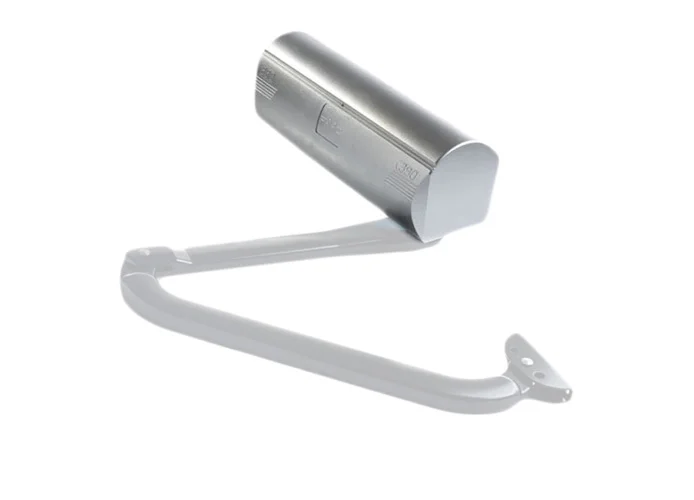

FAAC - ELECTROMECHANICAL GEARMOTOR WITH ARTICULATED ARM (NOT INCLUDED) FOR SWING GATES, FOR RESIDENTIAL USE, WITH LEAF UP TO 1,8 M ( 3 MT WITH ELECTROLOCK) AND FOLDING GATES WITH TWO LEAVES (UP TO 1,5 MT OF WIDTH PER PANEL)
- IRREVERSIBLE ACTUATOR, DOES NOT REQUIRE AN ELECTROLOCK UP TO 1.8 M.
- SUITABLE FOR USE ON LARGE PILLARS THANKS TO THE ARTICULATED ARM.
- MANUAL RELEASE DEVICE OPERABLE FROM INSIDE OR OUTSIDE THE PROPERTY
ACTUATOR 390
104573
24V DC
TECHNICAL DETAILS:
- POWER SUPPLY: 24V DC
- MAX POWER: 40 W
- MAX TORQUE: 200 NM (*)
- MAX ANGULAR SPEED: 8 °/S (*)
- OPERATING TEMPERATURE: -20°C ÷ +55°C
- DEGREE OF PROTECTION: IP44
- SIZES (LXPXH): 412 X 133 X 134 MM
Complementary accessories (not included):
- electronic equipment E024S 790286
- electronic equipment E124 790284
- emergency battery kit XBAT 24 ( not compatible with E 124 ) 390923
- emergency battery support kit specific for E 124, 390926
- flashing light Xled 410029
- jointed arm 738705
- telescopic arm (application for folding doors) 738706
- XF 433 MHz 787831 card receiver (EX 319006)
- two-channel transmitter XT2 433 SLH LR, 787007
- single limit switch kit on opening or closing 390682 (limit switches can only be used with an E145 control unit)
- external release device with cable and sheath Length 5 m 401057
- anti-theft key-operated selector switch with lever release XK 21 L 24V 401301
- kit for external release 424001
- key button T10 401010001/36
