FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWING GATES FOR RESIDENTIAL APPLICATION, LEAF UP TO 1,8 M
- SUITABLE FOR RESIDENTIAL USE
- IRREVERSIBLE ACTUATOR, DOESN'T REQUIRE ELECTRIC LOCK
- SIMPLIFIED INSTALLATION AND MAINTENANCE
- UNLOCKING DEVICE ACCESSIBLE ON THE REAR SIDE OF THE ACTUATOR

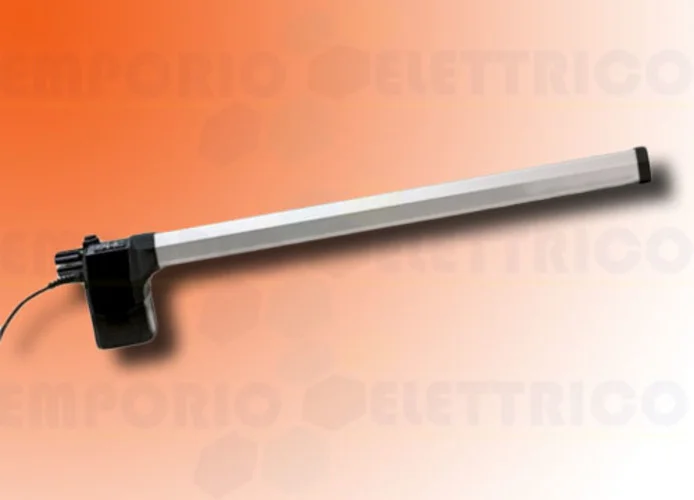

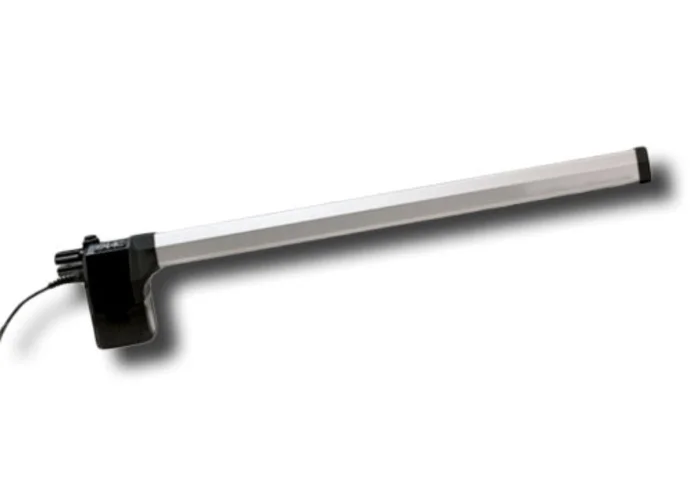

ACTUATOR 412 SX
104471
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 Hz
- ELECTRIC MOTOR: ASYNCHRONOUS SINGLE-PHASE
- MAX POWER: 220 W
- MAX THRUST: 5000 N (*)
- MAX SPEED ROD: 13 MM/S (*)
- MOTOR-PUMP UNIT CAPACITY: 1 LPM (*)
- ROD STROKE: 250 MM
- MAX OPENING ANGLE LEAF: 110°
- OPERATING TEMPERATURE: -20°C ÷ + 55°
- THERMOPROTECTION: 120°C
- DEGREE OF PROTECTION: IP55
- USE FREQUENCY: 55 CYCLES/HOUR
- MAX LEAF WIDTH: 1,80 M
- OIL TYPE: FAAC HP OIL
- SIZES (LXPXH): 959 X 85 X 85
- ELECTRONIC EQUIPMENT: NOT INCLUDED
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
