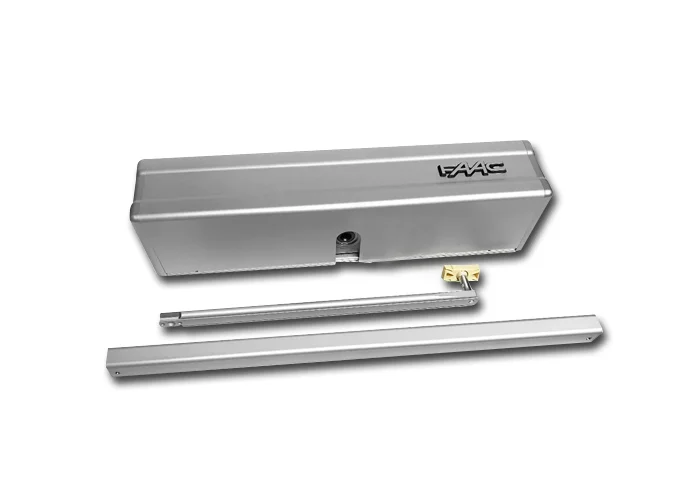

FAAC - AUTOMATION FOR SWING DOORS 950N2.
THE AUTOMATION, IN ACCORDANCE WITH EN16005, ALLOWS THE DOOR, WEIGHING MORE THAN 360 KG, TO BE MOVED QUIETLY AND IN CONTINUOUS OPERATION.
THE OPERATOR IS EQUIPPED WITH TWO ELECTRONIC BOARDS, A MICROPROCESSOR, A MAGNETIC ENCODER AND AN INTEGRATED SELECTOR FOR CHOOSING THE LOGIC OF OPERATION (AUTOMATIC, OPEN, MANUAL/NIGHT).
INCLUDING ANODISED ALUMINIUM CASING.
THE AUTOMATION HAS THE FUNCTIONS OF POSITION SELF-LEARNING, "PUSH AND GO" FUNCTION, "ANTI-WIND" FUNCTION, AVS FUNCTION (ANTI VANDAL SYSTEM), ADJUSTMENT TRIMMER.
SET-UP FOR MICROWAVE RADAR, INFRARED SENSOR, LASER SENSORS, ELECTRIC LOCKS, LATCH, KP EVO PROGRAMMING UNIT, FAAC RADIO CONTROLS.
FAAC AUTOMATION FOR SWING DOORS
1054152
TECHNICAL FEATURES:
MAINS SUPPLY VOLTAGE: 220-240 V~ - 50/60 HZ
MAX POWER: 100 W
OPERATION IN THE ABSENCE OF LINE VOLTAGE
MAX. DOOR OPENING ANGLE: 100° ÷ 125°
PAUSE TIME: 0 ÷ 30 S
NIGHT BREAK TIME 0 ÷ 90 S
AMBIENT OPERATING TEMPERATURE -20°C ÷ +55°C
DEGREE OF PROTECTION IP 23 (FOR INDOOR USE ONLY).
