FAAC - ELECTROMECHANICAL ACTUATOR 24 V S2500I FOR SWING GATES.
MODERN DESIGN, INTEGRATED FLASHLIGHT, INTEGRATED ADJUSTABLE MECHANICAL STOPS TO DEFINE END STOP POINTS FOR OPENING AND CLOSING (OPTIONAL).
MAX. LEAF WIDTH: 2 - 2,5 M
MAX. LEAF WEIGHT: 250 KG
IT INCLUDES:

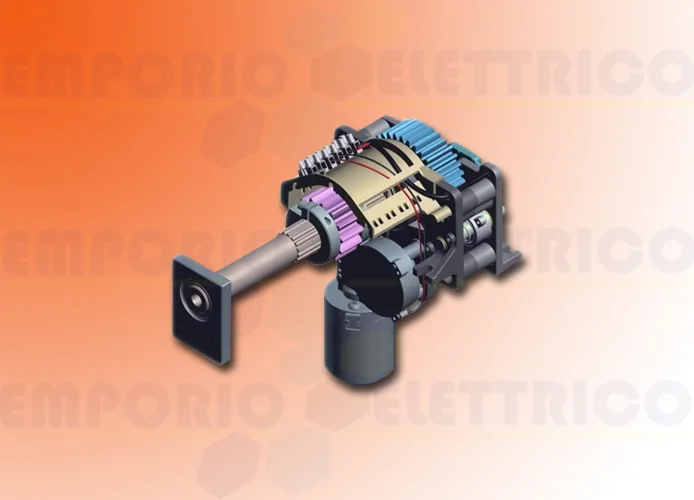

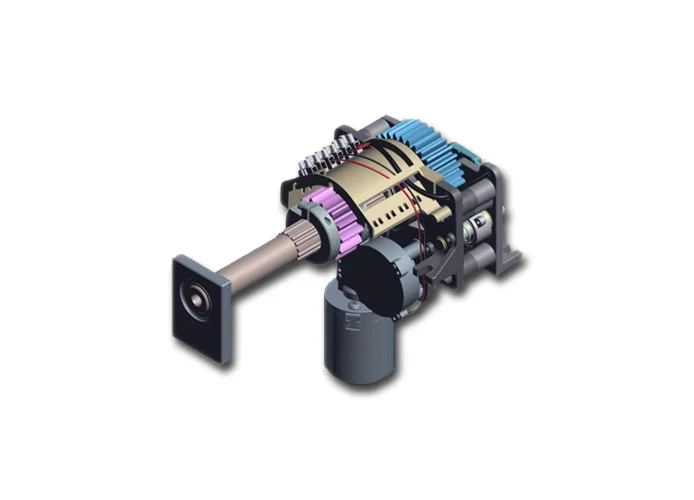

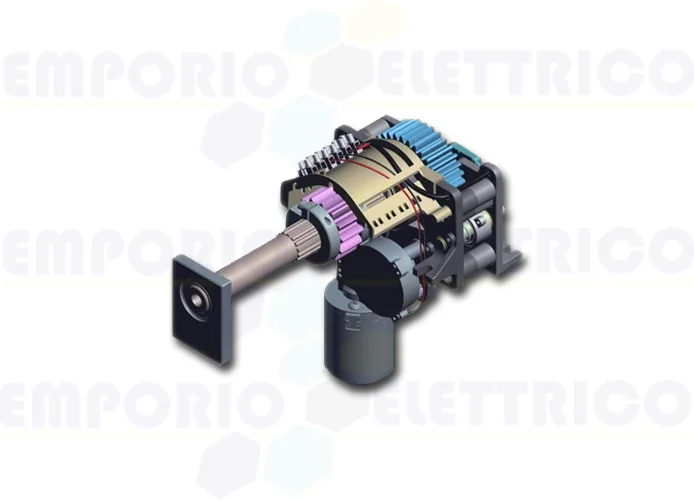

- 1 ELECTROMECHANICAL ACTUATOR 104250

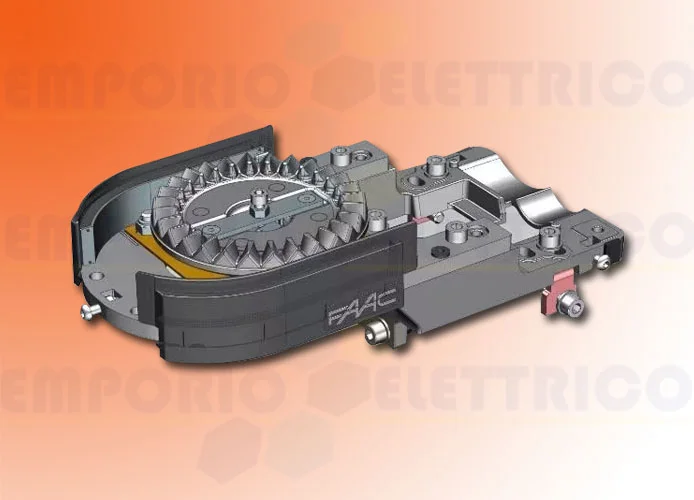

- 1 ACTUATOR-HINGE FASTENER
- 1 PACKAGE OF GREASE
- 1 RELEASE KEY
THE OPERATOR IS COMPATIBLE WITH FAAC E124 ELECTRONIC BOARD WITH FW VERSION 4.0 OR LATER
ELECTROMECHANICAL ACTUATOR FOR SWING GATES
MODEL S2500I 104250
24V
TECHNICAL DETAILS:
Mains supply: 220-240V~ 50/60 Hz
Electric motor: with brushes 24V
Max power: 40W
Max Torque: 320Nm
Maximum angular speed: 10°/s
Max leaf weight: 250 Kg
Door opening angle max: 165°
Operating temperature: -20°C ÷ + 55°C
Degree of protection: IP X4

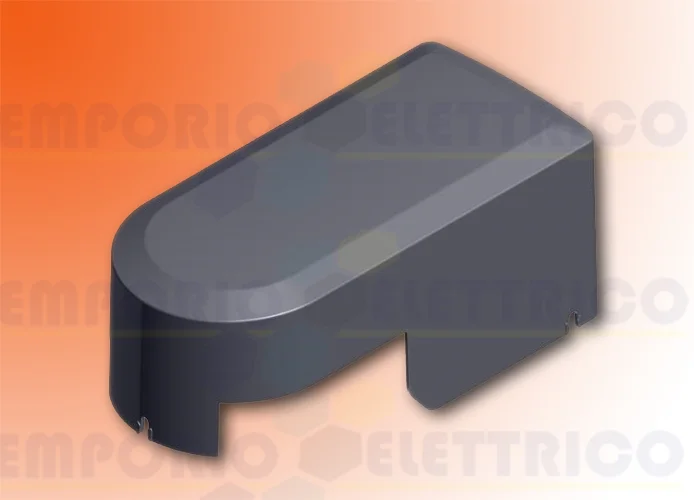

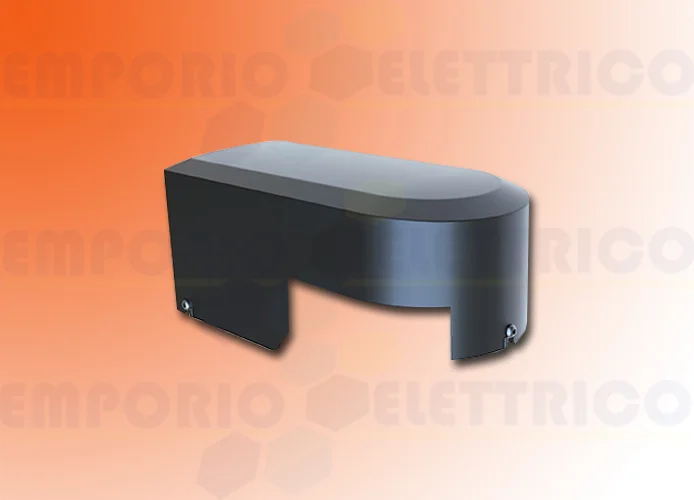

Weight: 7,9 Kg (actuator) – 3,3 Kg (hinge) – 1,8 Kg (cover)
Sizes (LxPxH): 340 x 160 x 150 mm
Electronic board: not included
Mechanical stops on opening and closing: optional
Continuous use of time (ROT): Continuous at 55°C
Encoder: Absolute Magnetic BUS
Max leaf width: 2 m (2,5m with electrolock)
Size of square column: 100×100, 120×120, 150×150 mm
