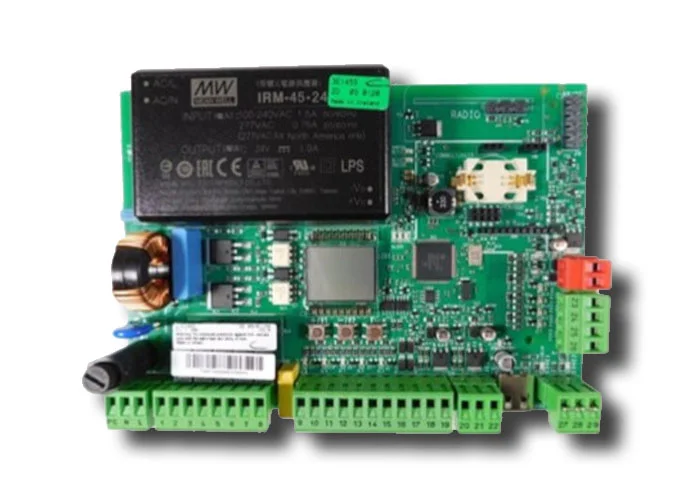

FAAC - ELECTRONIC BOARD FOR ONE OR TWO 230V AC GEARMOTORS
LCD DISPLAY PROGRAMMING OR WITH PC/MAC
IT REPLACES THE ELECTRONIC CARD: E145 790006
E145S 790076 (EX 790006)
230V AC
THE E145 ELECTRONIC BOARD FOR 230V AUTOMATIONS (CODE 790006) IS REPLACED BY THE NEW E145S ELECTRONIC CARD.
THE NEW E145S (CODE 790076 ) ADDS, TO THE WELL-KNOWN FEATURES OF THE PREVIOUS E145, WITH WHICH IT IS PERFECTLY COMPATIBLE, THE FOLLOWING SPECIFICATIONS/FUNCTIONALITY:
- NEW SWITCHING POWER SUPPLY: A NEW SWITCHING POWER SUPPLY, WITH EXTENDED RANGE, EVEN MORE PERFORMING THAN THE PREVIOUS ONE AND COMPLETELY PROTECTED BY A NON-REMOVABLE PLASTIC COVER. INTEGRATED SAFETY EDGE INPUTS (OPENING AND CLOSING): THE ALREADY HIGH SAFETY EQUIPMENT, INCLUDING FOR EXAMPLE THE POSSIBILITY OF CONTROLLING ABSOLUTE SAFECODER BUS ENCODERS, INCREASES IN E145S THANKS TO TWO NEW INDEPENDENT INPUTS TO WHICH IT IS POSSIBLE TO CONNECT SAFETY EDGES (MECHANICAL WITH NC OR RESISTIVE 8.2 KOHM CONTACT) WITHOUT THE NEED FOR ADDITIONAL CONTROL/MANAGEMENT DEVICES (E.G. CN60E FOR RESISTIVE EDGES). PLEASE FIND ATTACHED THE RELATIVE INSTRUCTION SHEET.
- E145S HAS A PLUG-IN CONNECTOR FOR SIMPLY CONNECT CONNECTIVITY MODULES THROUGH WHICH IT WILL ALSO BE POSSIBLE TO PROGRAM THE BOARD ITSELF. E145S NO LONGER HAS A USB B CONNECTOR AND IS THEREFORE NOT COMPATIBLE WITH THE PREVIOUS EASYBOARD PROGRAMMING SYSTEM (FROM PC/LAPTOP) WHICH WILL REMAIN COMPATIBLE WITH PREVIOUS FW VERSIONS.E145S CONTINUES TO MAINTAIN THE USB CONNECTOR WITH WHICH IT IS ALWAYS POSSIBLE, EVEN IN THE ABSENCE OF SIMPLY CONNECT DEVICES, TO UPDATE THE FW CARD, UPLOAD PROGRAMS MADE WITH EASYBOARD AND UPLOAD RADIO CODES (AS IN PREVIOUS E145).
complementary accessories:
- container mod. L for electronic boards 720118
- container mod. E for electronic boards 720119
- container mod. LM for electronic boards 720309
