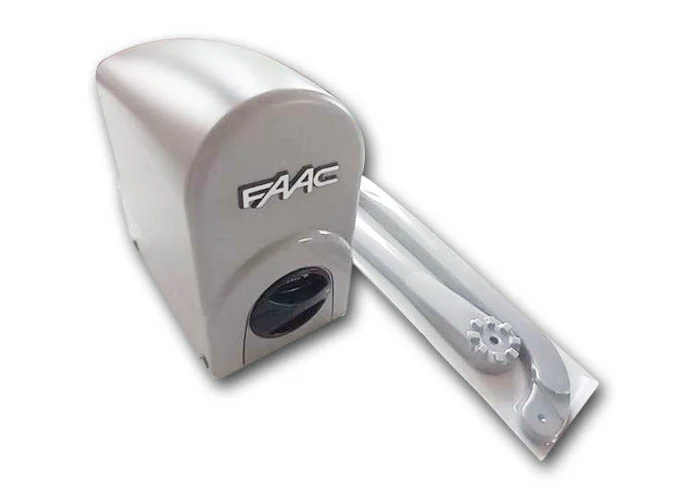

FAAC - ELECTROMECHANICAL GEARMOTOR WITH ARTICULATED ARM FOR RESIDENTIAL USE OF SWING GATES , UP TO 2M PER LEAF ( 2,5 MT WITH ELECTROLOCK)
- SUITABLE FOR RESIDENTIAL USE
- CONTROL UNIT NOT INTEGRATED
- IN CASE OF A POWER FAILURE, THE BATTERY (OPTIONAL) OR THE DEVICE CAN BE SIMPLY OPERATED
- INTEGRATED MECHANICAL STOPS, IT AVOIDS THE INSTALLATION OF MECHANICAL OPENING AND CLOSING STOPS.
- VERSATILE AND SIMPLE INSTALLATION: 185 MM MAXIMUM SPACE. HIGH FLEXIBILITY OF INSTALLATION DIMENSIONS
ACTUATOR 391
104577
24V DC
TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 HZ
- ELECTRIC MOTOR: WITH BRUSHES 24V
- MAX POWER: 40 W
- MAX TORQUE: 250 NM
- MAX ANGULAR SPEED: 13 °/S
- MAX ANGLE LEAF OPENING: 120°
- OPERATING TEMPERATURE: -20 °C ÷ +55 °C
- DEGREE OF PROTECTION: IP44
- USE FREQUENCY: 80 CYCLES/HOUR
- MAX LEAF WIDTH: 2 M (2,5 M WITH ELECTRIC LOCK)
- SIZES (LXPXH): 185 X 260 X 310 MM
Complementary accessories (not included):
- electronic equipment E024S 790286
- electronic equipment E124S 790305
- emergency battery kit XBAT 24 ( not compatible with E 124 ) 390923
- emergency battery support kit specific for E 124, 390926
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
- kit for external release 424001
- electro lock 12v ac complete with floor-mounted hatch 712650
- single-leaf gate pillar connection 712990
