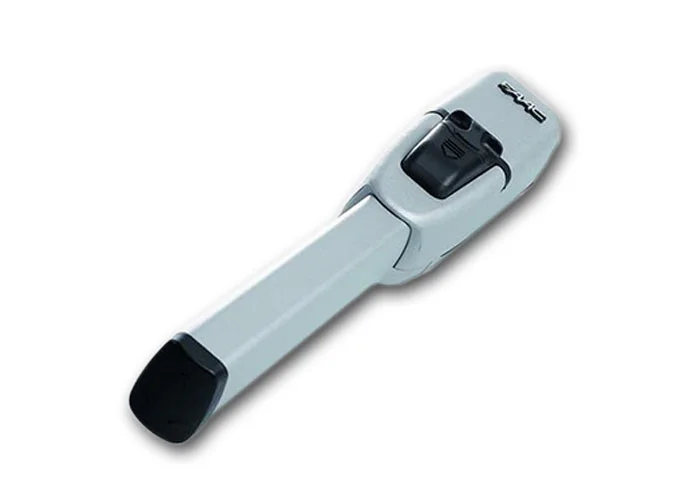

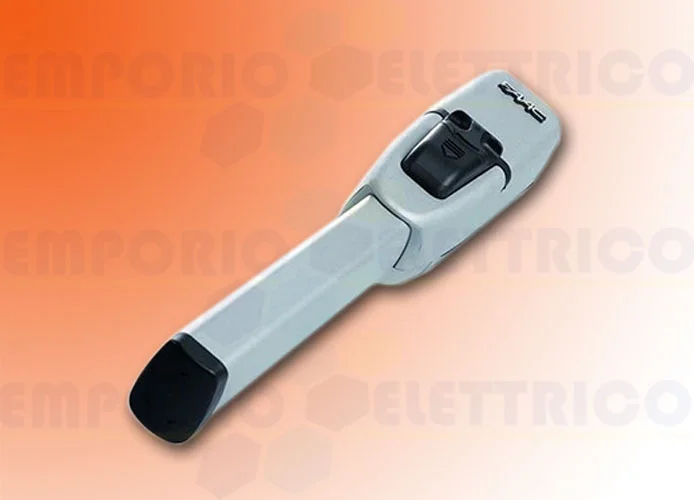

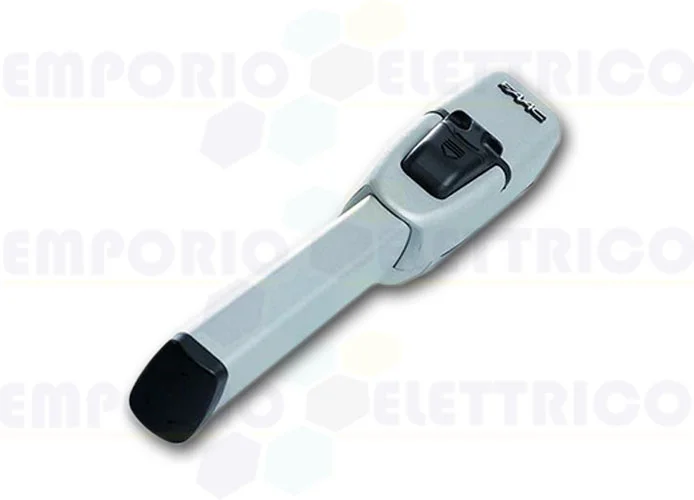

FAAC - ELECTROMECHANICAL OPERATOR FOR SWINGING GATES FOR RESIDENTIAL APPLICATION, LEAFS UP TO 1,8 M (2,5 M WITH ELECTRIC LOCK)
- SUITABLE FOR RESIDENTIAL USE
- "OFF-AXIS" PUSH ACTUATOR
- INTEGRATED MECHANICAL OPENING AND CLOSING STOPS
- HALF-BODY COUPLING WITH GASKET
- DOUBLE-LAYER PAINTED DIE-CAST ALUMINIUM BODY
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND
- SET-UP FOR "GATECODER" OBSTACLE DETECTION DEVICE
GEARMOTOR 413
104413
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY: 230Vac
- POWER: 250 W
- CURRENT: 1,1 A
- THERMOPROTECTION: 140 °C
- CAPACITOR: 6,3 µf
- THRUST: 200 daN
- ROD STROKE: 300mm (350mm WITHOUT MECHANICAL STOPS)
- OUTPUT SPEED ROD: 1,6 cm/sec
- TYPE AND FREQUENCY OF USE AT 20 °C: S3 - 30%
- OPERATING TEMPERATURE: -20 °C / +55 °C
- SIZES (L X P X H): 785 X 105 X 148 mm
- DEGREE OF PROTECTION: IP54
- LIMIT SWITCHES: YES
- MECHANICAL STOPS ON OPENING AND CLOSING: YES
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
