faac gearmotor 415 24v dc 1044151

SKU: 1044151

£594.00  £356.40VAT INCLUDED

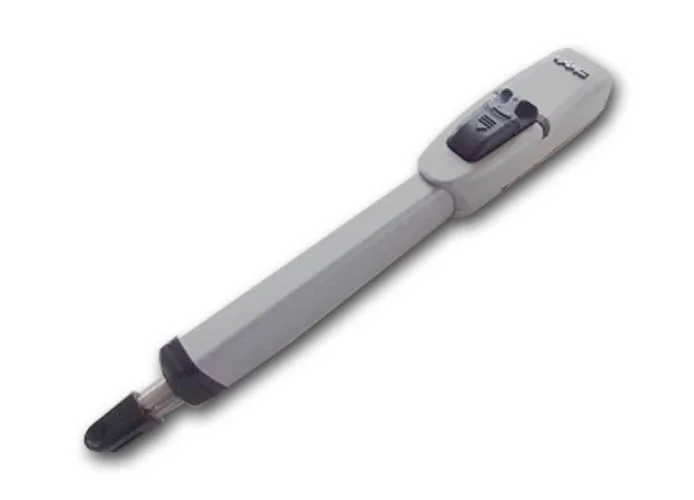

FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWINGING GATES, FOR RESIDENTIAL APPLICATION, LEAF UP TO 2,5 M ( 3 MT WITH ELECTRICAL LOCK)

- SUITABLE FOR RESIDENTIAL USE
- "ON-AXIS" PUSH ACTUATOR
- NEW CONTROL PANEL WITH ANTI-CRUSHING DEVICE AND VIRTUAL ENCODER WITH OBSTACLE REVERSAL FUNCTION
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND

415  1044151

24V DC


TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 HZ
- MAX POWER: 70 W
- MAX THRUST: 2800 N
- MAX ROD SPEED: 16 MM/S
- ROD STROKE: 300 MM
- MAX OPENING LEAF ANGLE: 110°
- OPERATING TEMPERATURE: -20°C ÷ +55°C
- DEGREE OF PROTECTION: IP54
- MAX LEAF WIDTH: 2,5 M (3 WITH ELECTROLOCK)
- SIZES (LXPXH): 835 X 105 X 148 MM
- ELECTRONIC EQUIPMENT: NOT INCLUDED


Complementary accessories (not included):
-  electronic equipment E024S 790286
-  electronic equipment E124S 790305
-  emergency battery kit XBAT 24 ( not compatible with E 124 ) 390923
-  emergency battery support kit specific for E 124, 390926
-  wall plate 737604
-  XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
-  case protection cover 727525

  • Brand: FAAC
