FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWINGING GATES, FOR RESIDENTIAL APPLICATION, LEAF UP TO 3M (4M WITH ELECTRICAL LOCK)
- SUITABLE FOR RESIDENTIAL USE
- "ON-AXIS" PUSH ACTUATOR
- DIE-CAST ALUMINIUM BODY FULLY DOUBLE-PAINTED FOR DURABILITY
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY A KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND

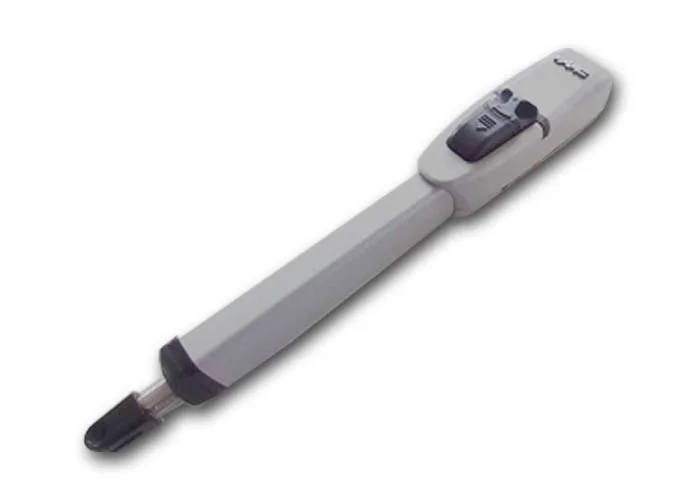

ACTUATOR 415 L
1044171
24V DC
TECHNICAL DETAILS:
- POWER SUPPLY: 230V~ 50 HZ
- MAX POWER: 70 W
- MAX THRUST: 2800 N
- OUTPUT SPEED ROD: 16 MM/S
- ROD STROKE: 400 MM
- MAX OPENING ANGLE LEAF: 110°
- OPERATING TEMPERATURE: -20°C ÷ +55°C
- DEGREE OF PROTECTION: IP54
- SIZES (LXPXH): 940 X 105 X 148 MM
Complementary accessories (not included):
- electronic equipment E024S 790286
- electronic equipment E124S 790305
- emergency battery kit XBAT 24 ( not compatible with E 124 ) 390923
- emergency battery support kit specific for E 124, 390926
- wall plate 737604
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
