faac gearmotor 415 l ls 230v ac 104418

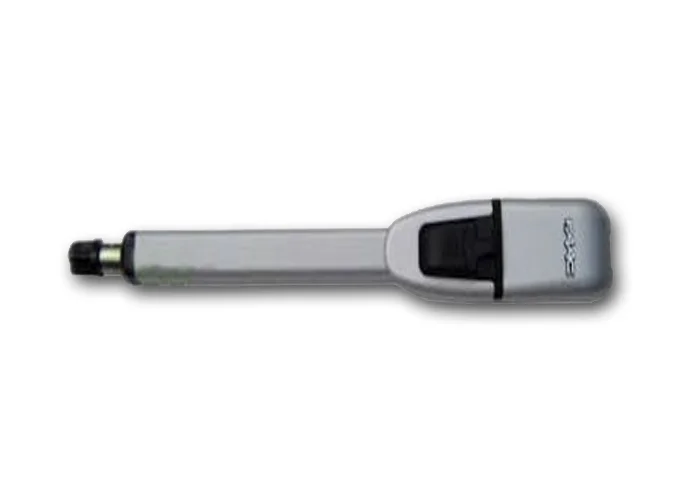

FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWING GATES FOR RESIDENTIAL USE, LEAF UP TO 3 METERS (4 MT WITH ELECTROMAGNETIC LOCK)

- SUITABLE FOR RESIDENTIAL USE
- "ON-AXIS" PUSH ACTUATOR
- DIE-CAST ALUMINIUM BODY FULLY DOUBLE-PAINTED FOR DURABILITY
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY A KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND


ACTUATOR 415 L LS
104418
230V AC


TECHNICAL DETAILS:
- POWER SUPPLY: 230 VAC
- POWER: 300 W
- CURRENT: 1,3 A
- THERMOPROTECTION: 140° C
- CAPACITOR: 8 µF
- THRUST: 300 DAN
- ROD STROKE: 400 MM
- OUTPUT SPEED ROD: 1,6 CM/SEC
- MAX LEAF WIDTH: 4 M
- SIZES (L X P X H) IN MM: 940 X 105 X 148
- DEGREE OF PROTECTION: IP54
- LIMIT SWITCHES: YES

Complementary accessories (not included):
-  electronic board E045S 790077
-  electronic board E045S LC 790079
-  electronic board E145S LC 790306
-  container mod. E for electronic boards 720119
-  wall plate 737604
- SAFEcoder magnetic absolute encoder BUS (FAAC patented) 404047
