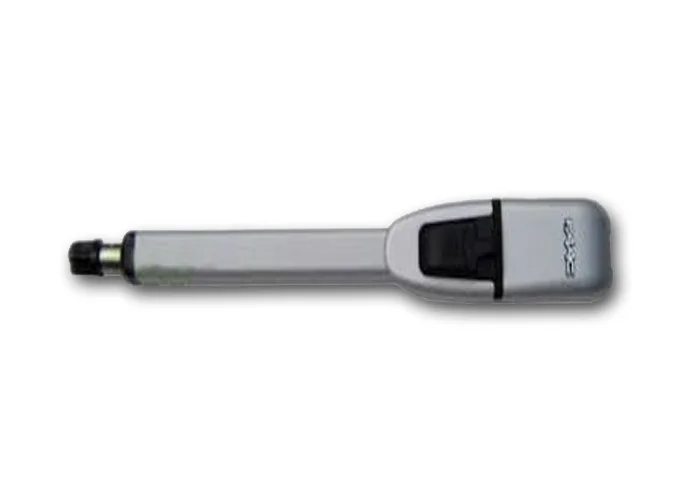

FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWING GATES FOR RESIDENTIAL USE, LEAF UP TO 3 METERS (4 MT WITH ELECTROMAGNETIC LOCK)
- SUITABLE FOR RESIDENTIAL USE
- "ON-AXIS" PUSH ACTUATOR
- DIE-CAST ALUMINIUM BODY FULLY DOUBLE-PAINTED FOR DURABILITY
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY A KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND
ACTUATOR 415 L LS
1044181
24V DC
TECHNICAL DETAILS:
- POWER SUPPLY: 24V DC
- POWER: 70 W
- CURRENT: 3 A
- THRUST: 280 daN
- ROD STROKE: 400 MM
- OUTPUT SPEED ROD: 1,6 CM/SEC
- MAX LEAF WIDTH: 4 M
- SIZES (L X P X H) IN MM: 940 X 105 X 148
- DEGREE OF PROTECTION: IP54
- LIMIT SWITCHES: YES
Complementary accessories (not included):
- electronic equipment E024S 790286
- electronic equipment E124 790284
- emergency battery kit XBAT 24 ( not compatible with E 124 ) 390923
- emergency battery support kit specific for E 124, 390926
- flashlight faaclight 24v dc 410014
- XF 433 MHz 787831 card receiver (EX 319006)
- flashing light Xled 410029
- two-channel transmitter XT2 433 SLH LR, 787007
- key button T10 401010001/36
- XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
- electro lock 12v ac complete with floor-mounted hatch 712650
- single-leaf gate pillar connection 712990
