FAAC - ELECTROMECHANICAL GEARMOTOR FOR SWING GATES FOR RESIDENTIAL USE, LEAF UP TO 2,5 METERS (3 MT WITH ELECTROMAGNETIC LOCK)
- SUITABLE FOR RESIDENTIAL USE
- "ON-AXIS" PUSH ACTUATOR
- DIE-CAST ALUMINIUM BODY FULLY DOUBLE-PAINTED FOR DURABILITY
- MANUAL RELEASE DEVICE WITH SIMPLIFIED OPERATION PROTECTED BY A KEY
- HORIZONTAL CABLE OUTLET TO ALLOW INSTALLATION CLOSE TO THE GROUND

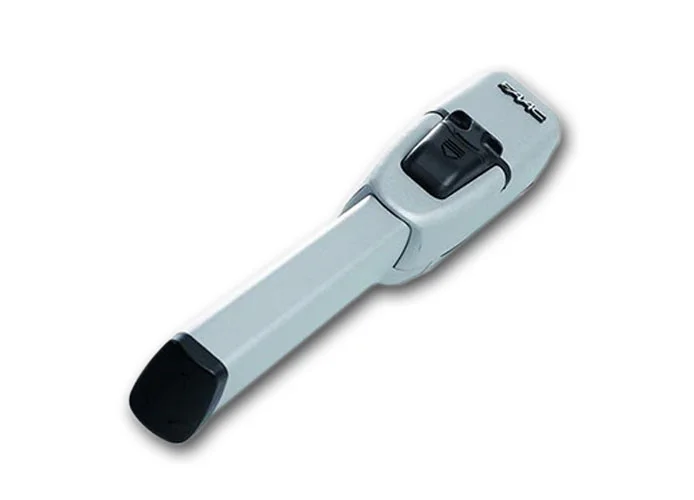

ACTUATOR 415 LS
104416
230V AC
TECHNICAL DETAILS:
- POWER SUPPLY: 230Vac
- POWER: 300 W
- CURRENT: 1,3 A
- THERMOPROTECTION: 140° C
- CAPACITOR: 8 ΜF
- THRUST: 300 DAN
- ROD STROKE: 300 MM
- OUTPUT SPEED ROD: 1,6 CM/SEC
- MAX WIDTH LEAF: 4 M
- OPERATING TEMPERATURE: -20°C ÷ +55°C
- SIZES (L X P X H) IN mm: 835 X 105 X 148
- DEGREE OF PROTECTION: IP54
- LIMIT SWITCHES: NO
Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. L for electronic boards 720118
- container mod. E for electronic boards 720119
- container mod. LM for electronic boards 720309
- wall plate 737604
- SAFEcoder magnetic absolute encoder BUS (FAAC patented) 404040
- flashing light Xled 410029
- XF 433 MHz 787831 card receiver (EX 319006)
- two-channel transmitter XT2 433 SLH LR, 787007
- key button T10 401010001/36
- electro lock 12v ac complete with floor-mounted hatch 712650
- single-leaf gate pillar connection 712990
- case protection cover 727525
