faac gearmotor s418 24v dc 104301

SKU: 104301

£481.00  £288.60VAT INCLUDED

FAAC - ELECTROMECHANICAL OPERATOR FOR SWINGING GATES FOR RESIDENTIAL APPLICATION, LEAFS UP TO 2,3 M (2,7 M WITH ELECTRIC LOCK)


- SUITABLE FOR RESIDENTIAL USE
- HIGH ADJUSTABLE MOVEMENT SPEED
- NOT TO WELD 'MULTI-POSITION' FIXING BRACKET
- INTEGRATED MECHANICAL OPENING AND CLOSING STOPS

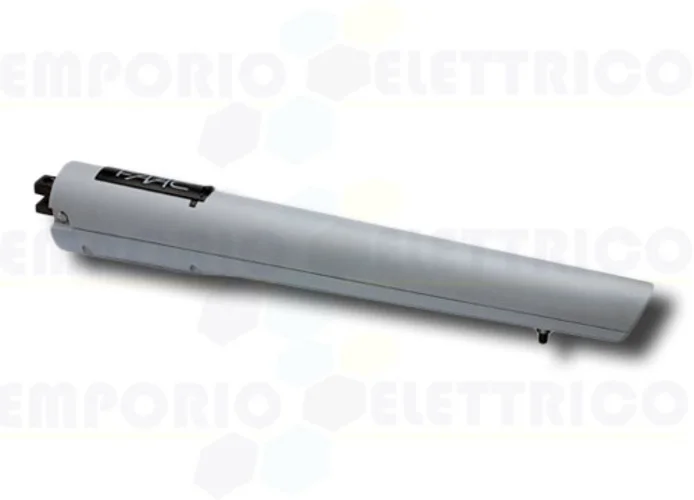

ACTUATOR S418
104301

24V DC


TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 HZ
- MAX POWER: 35 W
- MAX THRUST: 1800 N
- MAX ROD SPEED: 37 MM/S (CON E124)
- ROD STROKE: 350 MM (390 MM WITHOUT STOPS)
- MAX OPENING LEAF ANGLE: 110°
- OPERATING TEMPERATURE: -20°C ÷ + 55°C
- DEGREE OF PROTECTION: IP54
- MAX LEAF WIDTH: 2,3 M (2,7 M WITH ELECTRIC LOCK)
- SIZES (LXPXH): 823 X 104 X 137 MM
- ELECTRONIC EQUIPMENT: NOT INCLUDED


Complementary accessories (not included):
-  electronic equipment E024S 790286
-  electronic equipment E124S 790305
-  emergency battery kit XBAT 24 ( not compatible with E 124 ) 390923
-  emergency battery support kit specific for E 124, 390926
-  XIB BUS interface (if using E045 electronic board with ftc no bus) 790062
